Fully assembled pickup
This is a custom build bike that starts with your frame selection and components. You will pick up your fully assembled and ready to ride bike from DT Creations.
Share on social media
Much like our mixed-wheel Tracer, the Tracer 29 is built to be fast, capable, fun, and agile—but with 29” wheels front and rear, it offers added stability and a smoother, more confidence-inspiring ride over rough terrain. UDH equipped and T-Type drivetrain compatible
*Note: The fork must be purchased with a rear shock. You can not purchase just the frame and fork. The frame does not qualify for a toolkit.
IN STORE PICKUP ONLY
BUILD SPECS

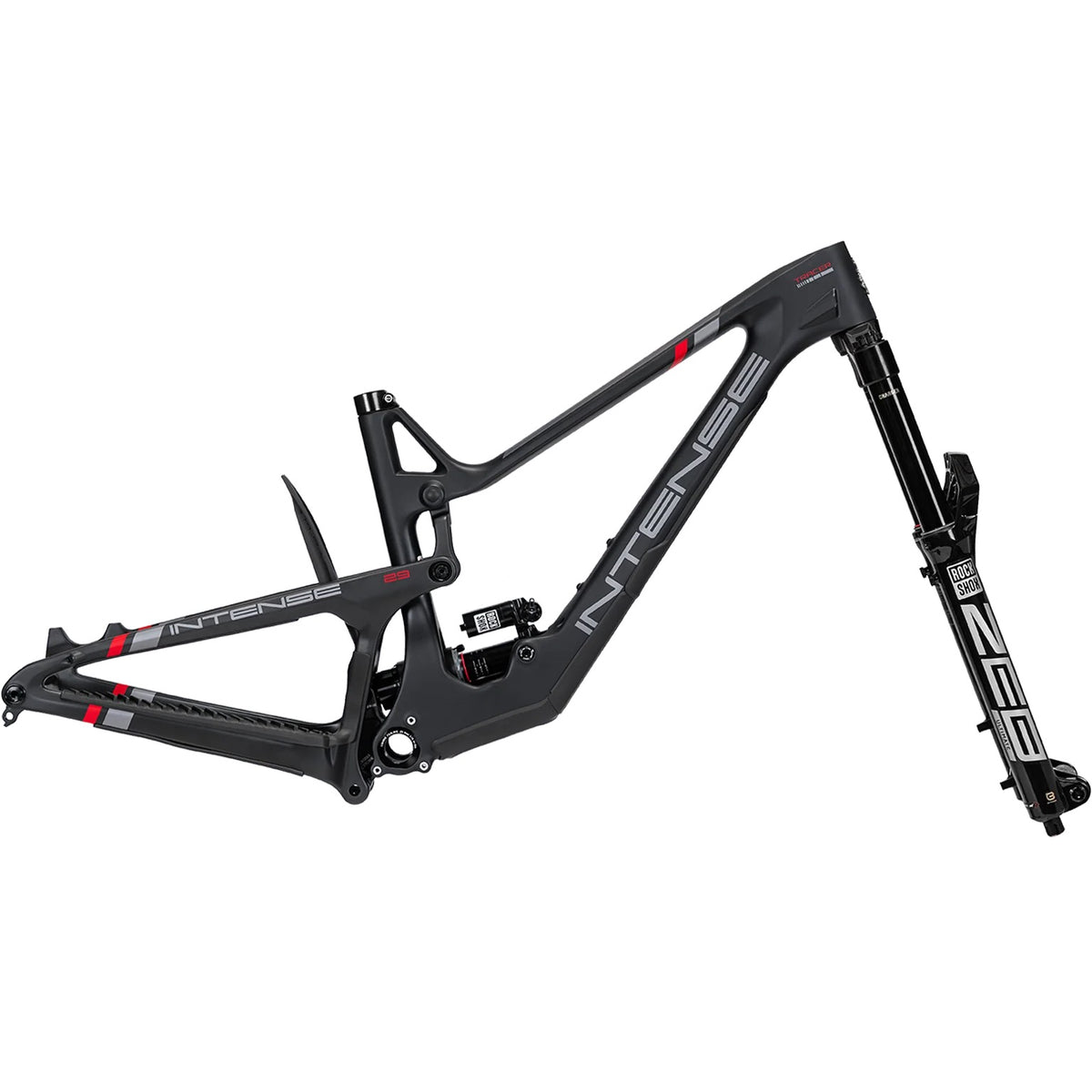

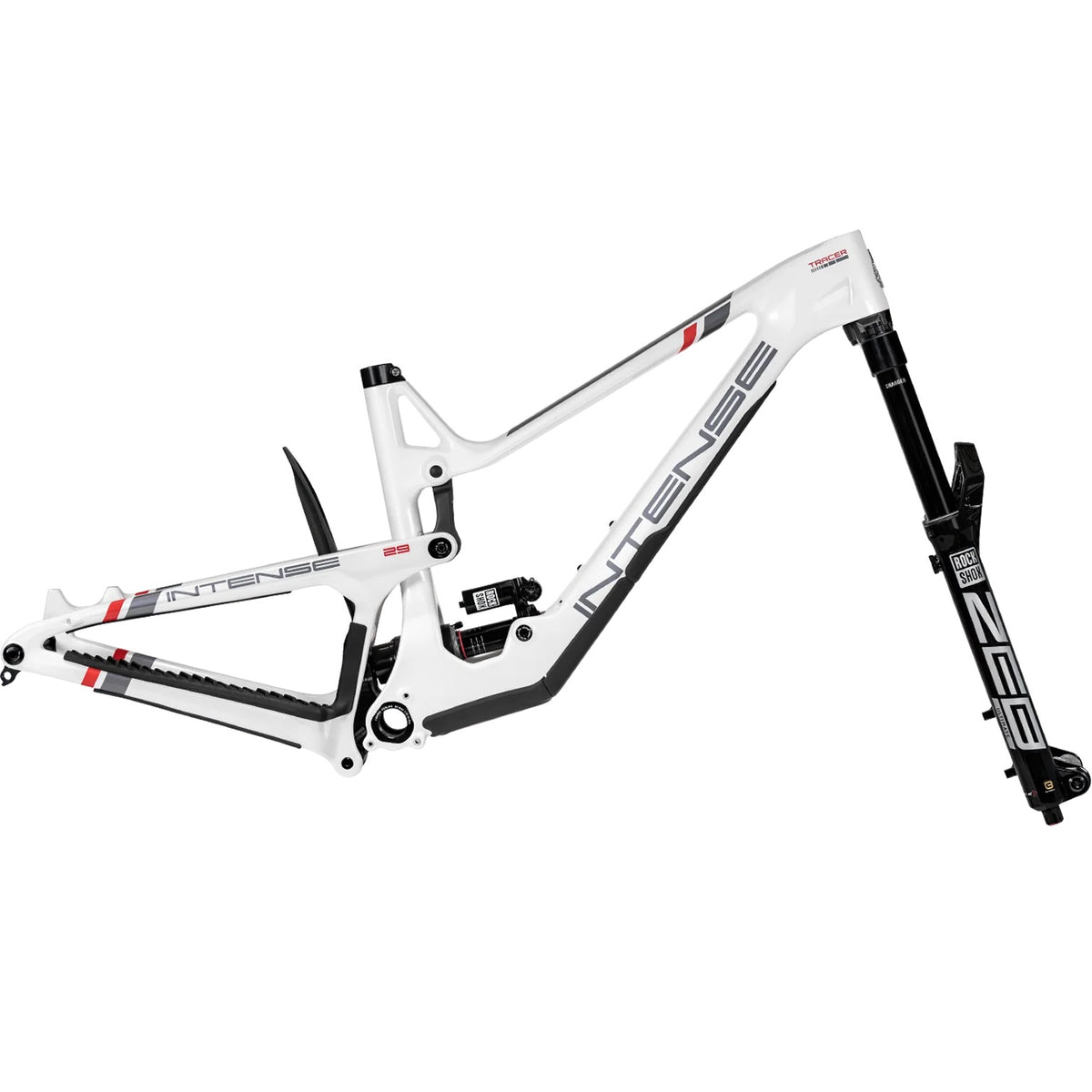

| BUILD | TRACER 29 FRAME |

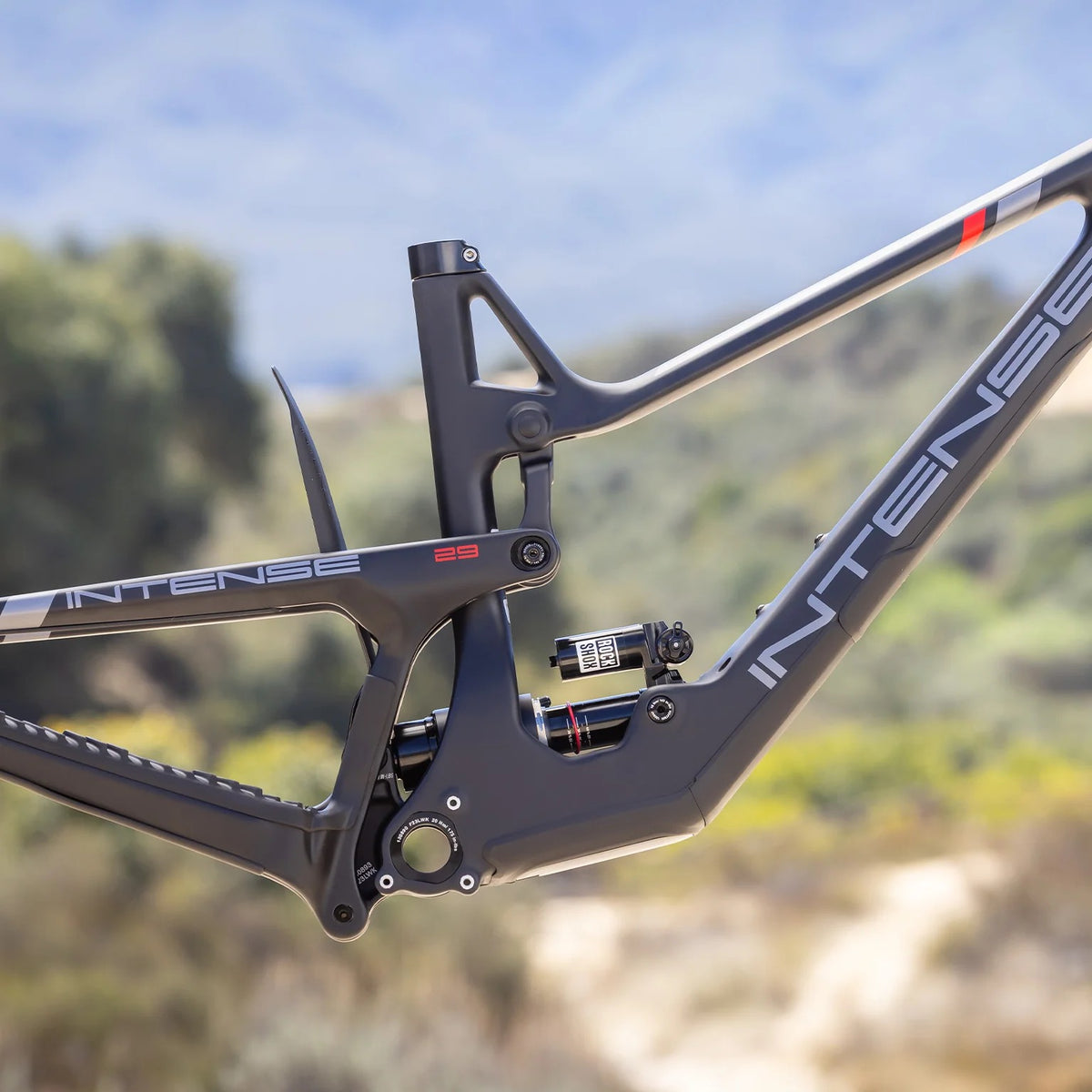

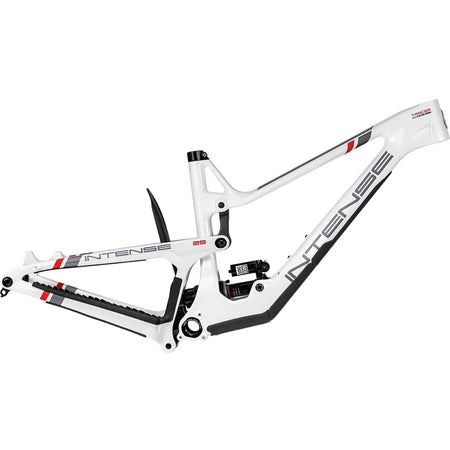

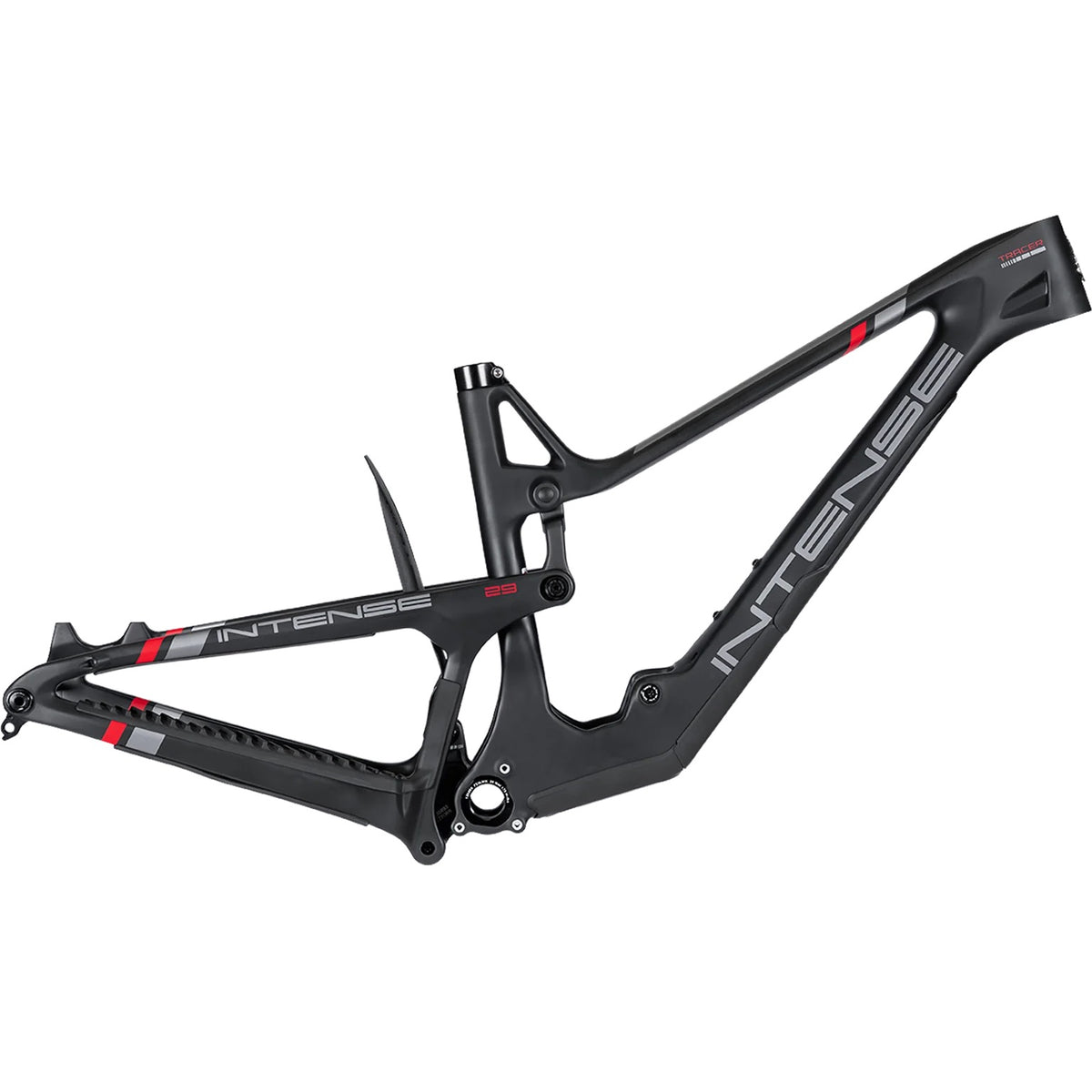

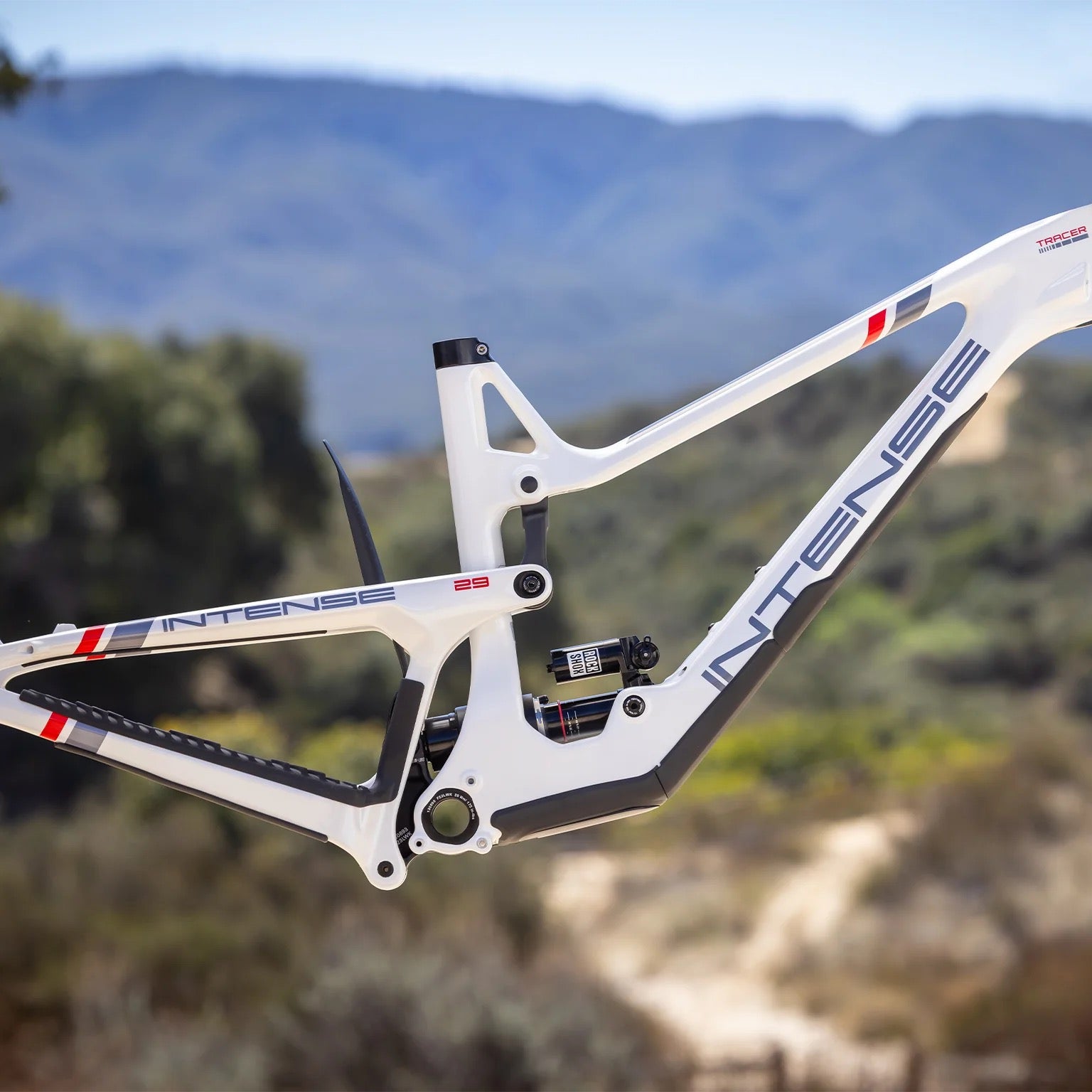

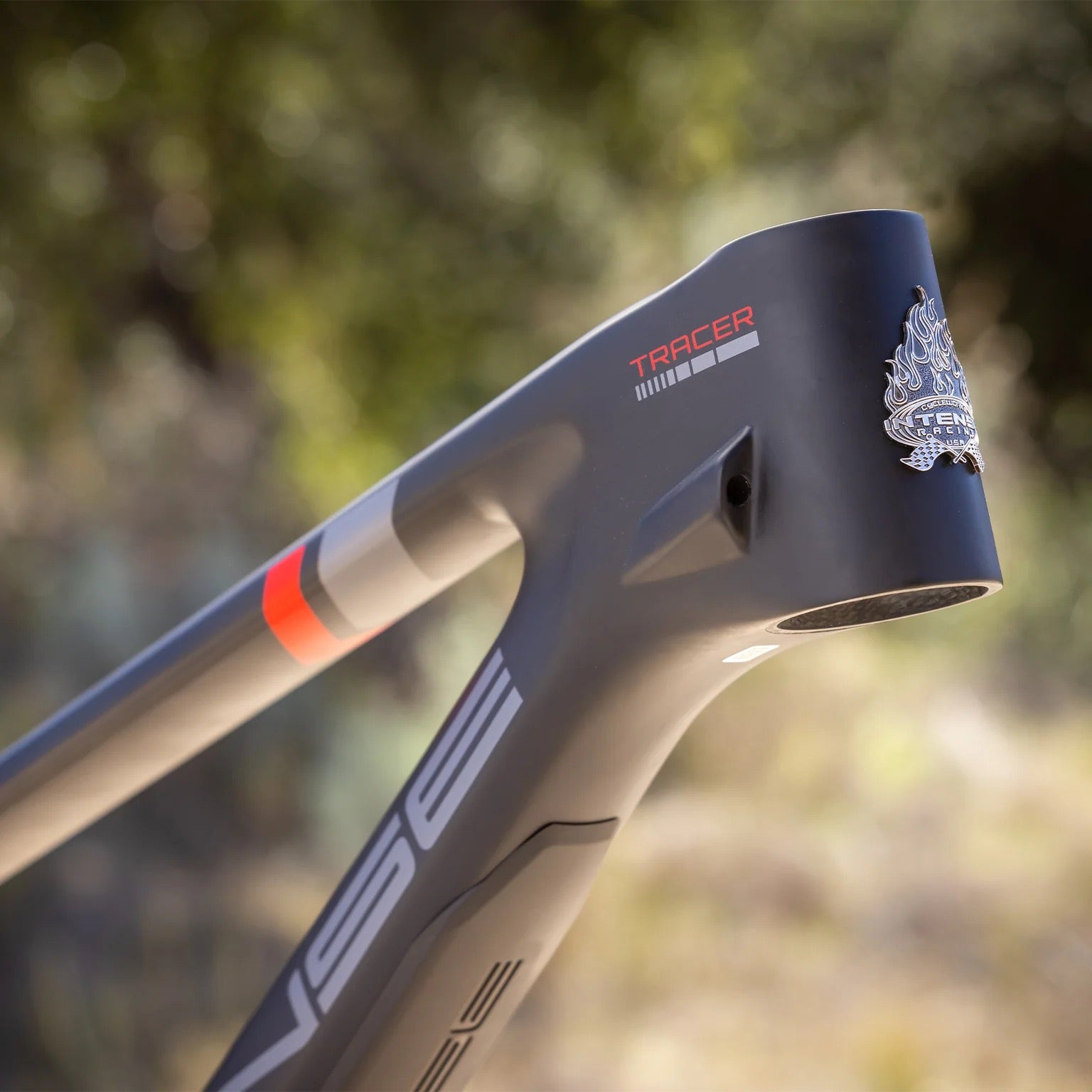

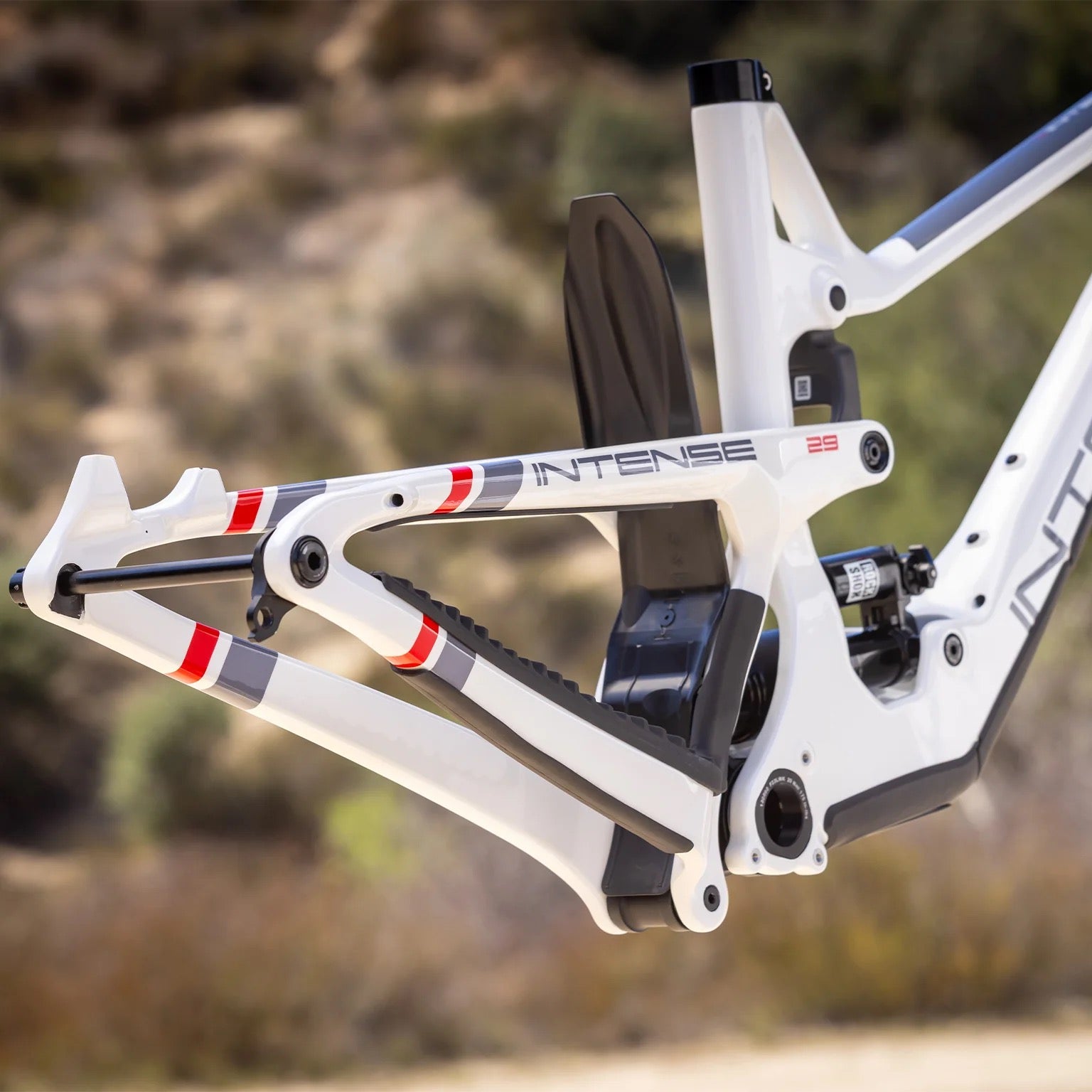

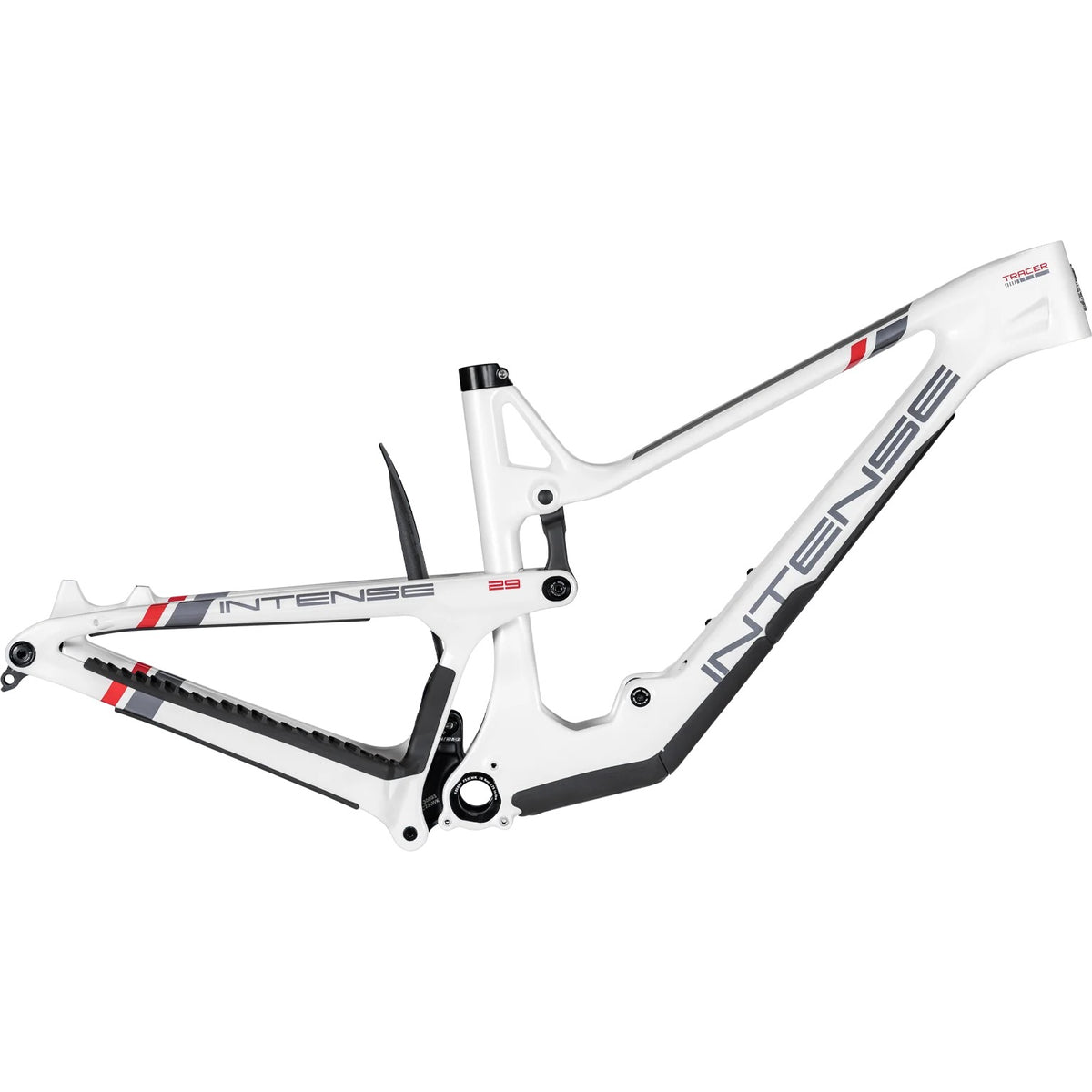

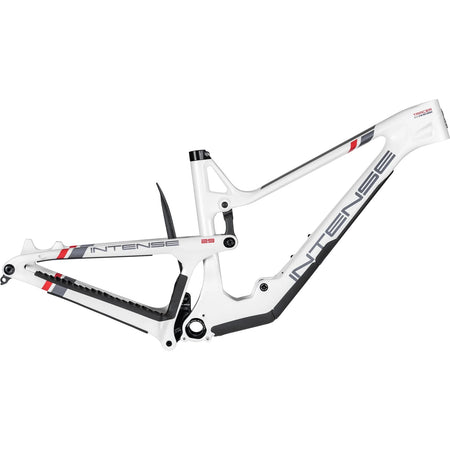

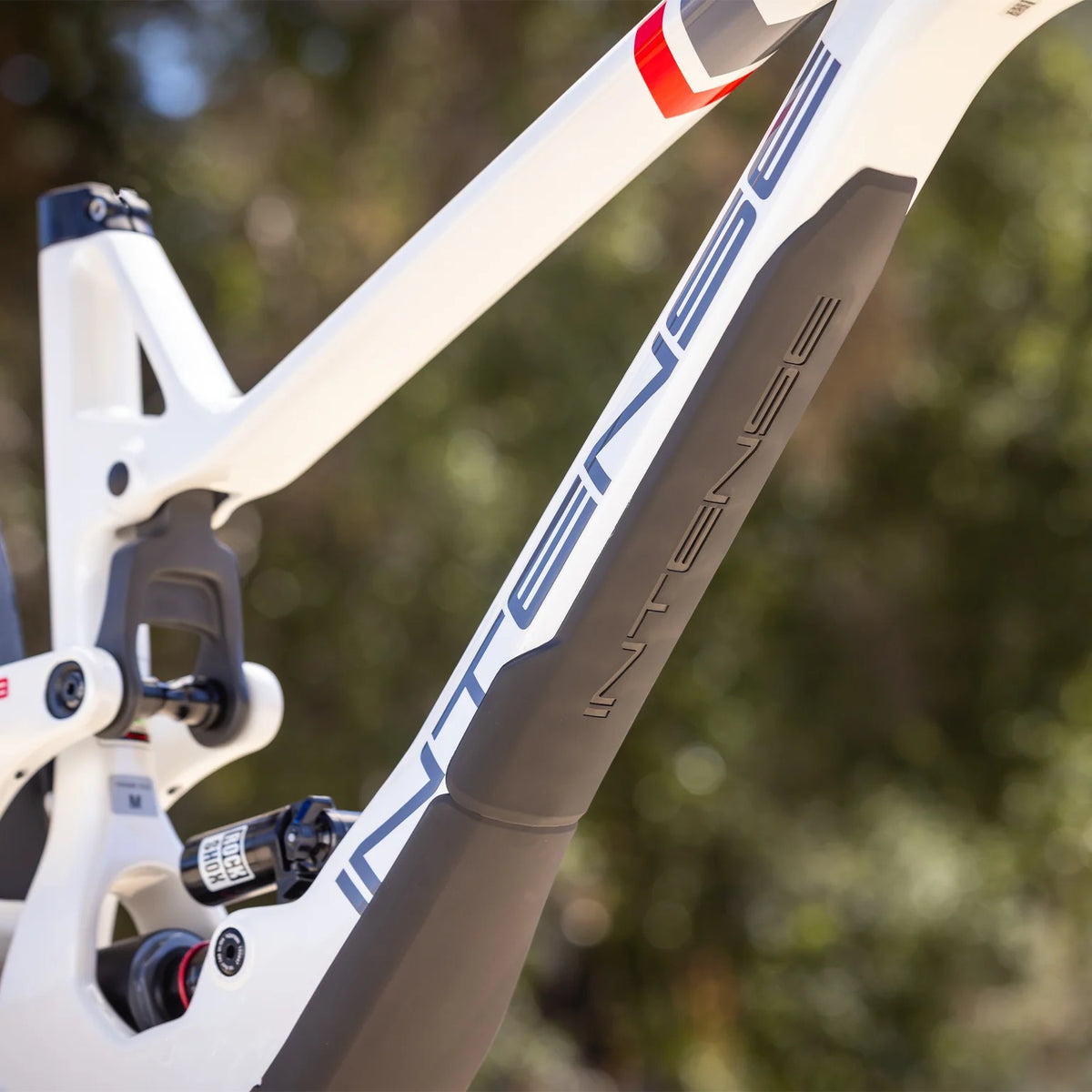

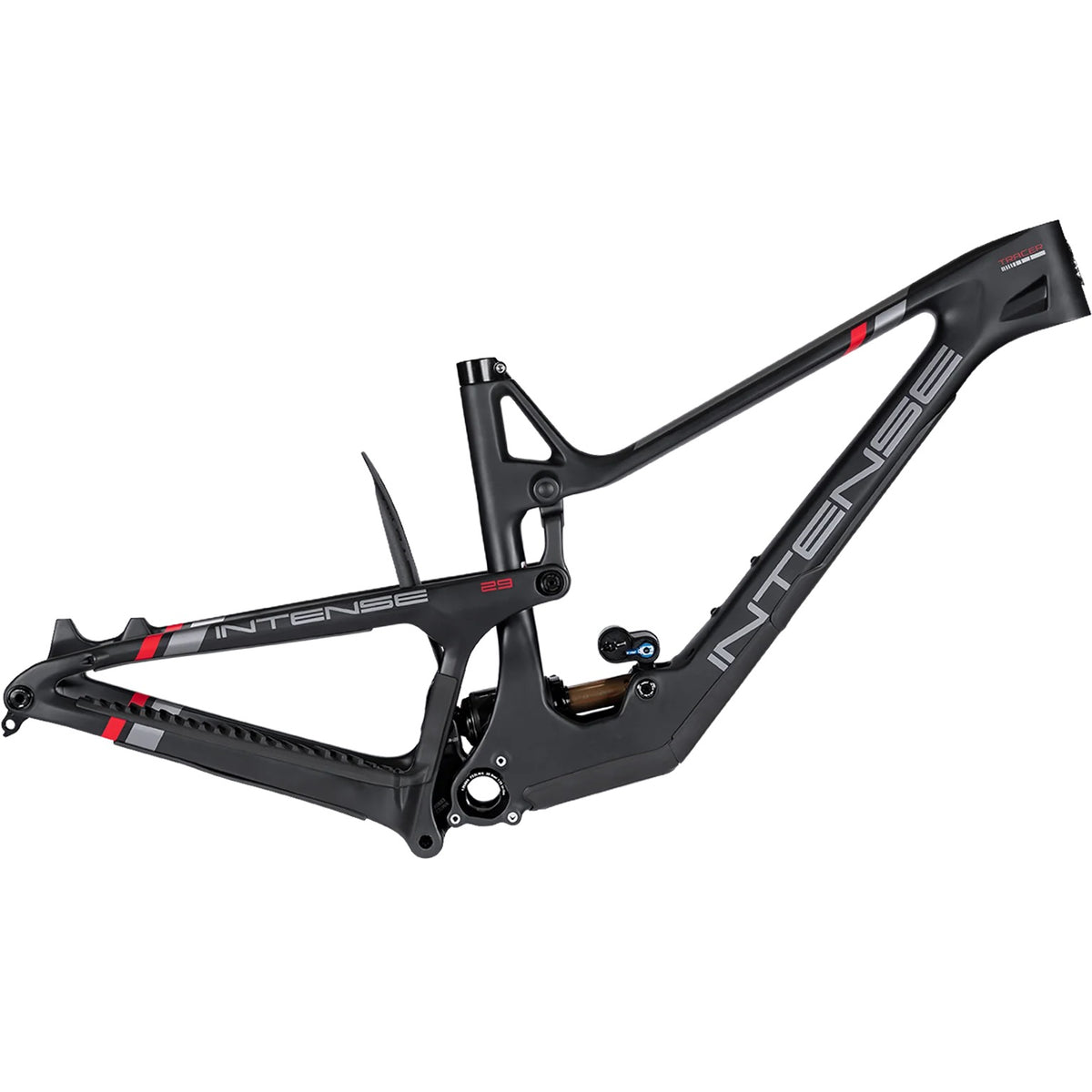

| FRAME | Full carbon fiber front and rear triangle utilizing an optimized carbon layup for the enduro category. Features fully guided internal cable routing, carbon top link, titanium hardware, ISCG-05 tabs, and threaded BB. Universal derailleur hanger (UDH), T-type compatible, quick release rear axle (148mm Boost Hub Spacing) |

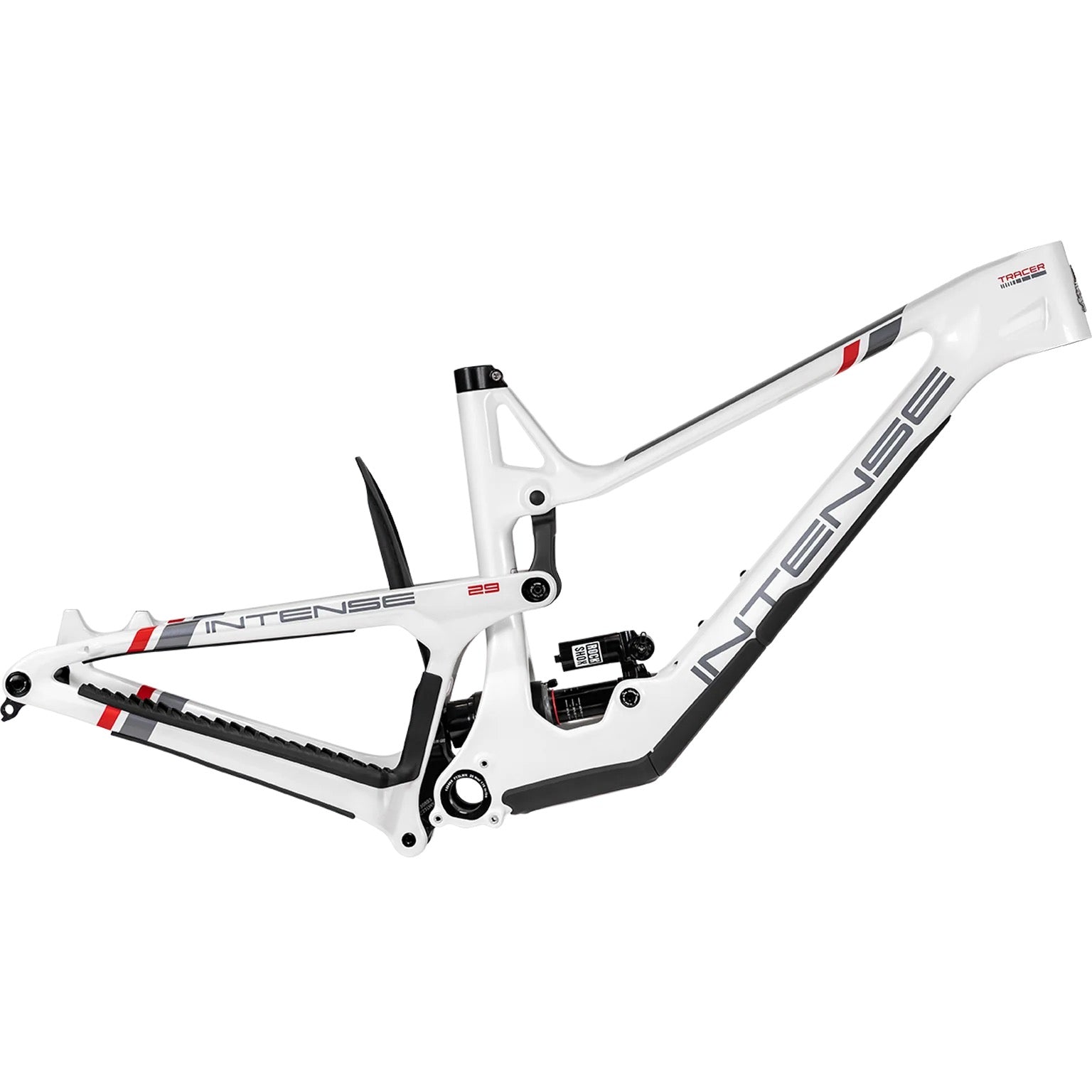

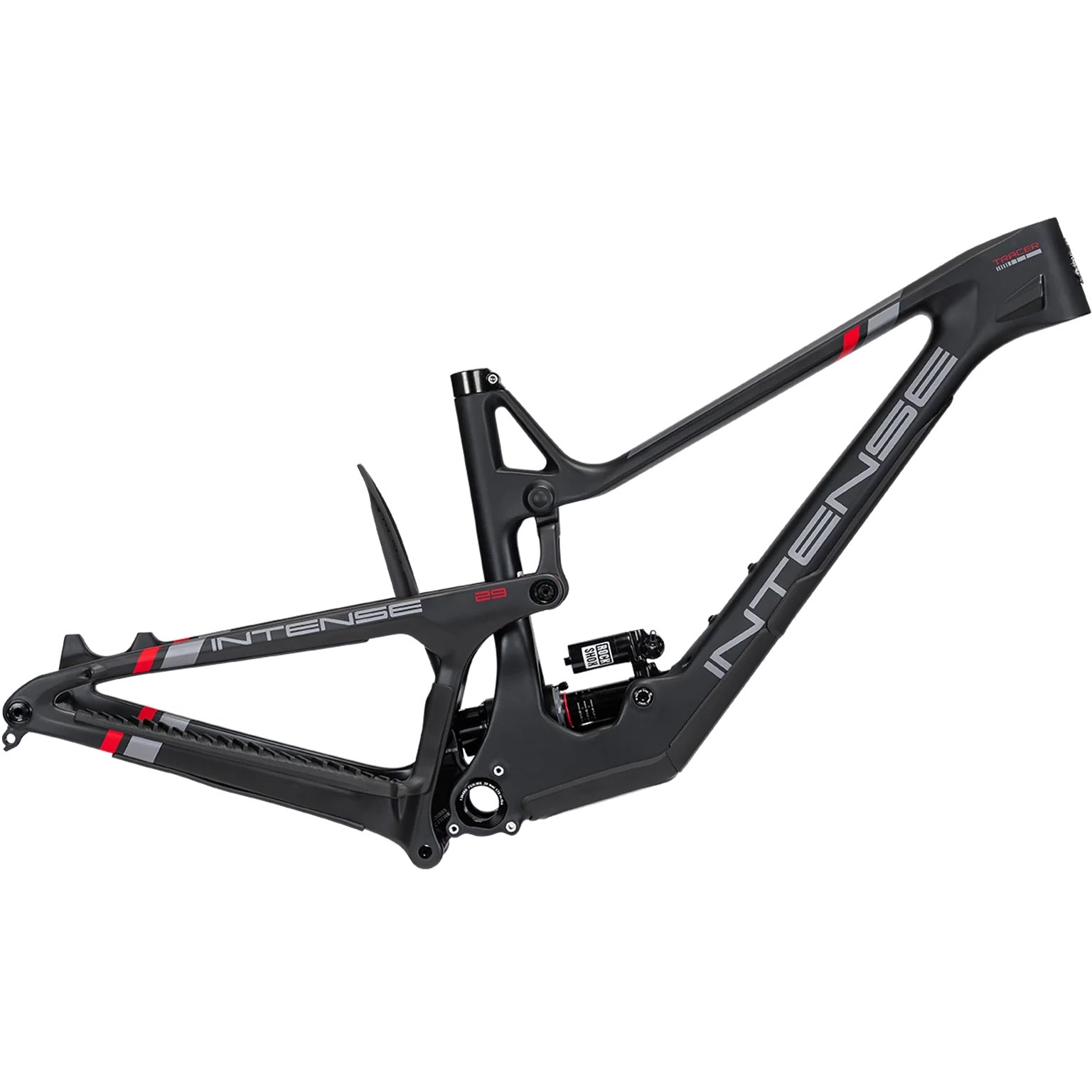

| ROCKSHOX VIVID Ultimate |
TouchDown RC2T damper, 170mm travel, rebound adjustment, high/low speed compression adjustment, DebonAir technology, adjustable hydraulic bottom out with five compression settings. |

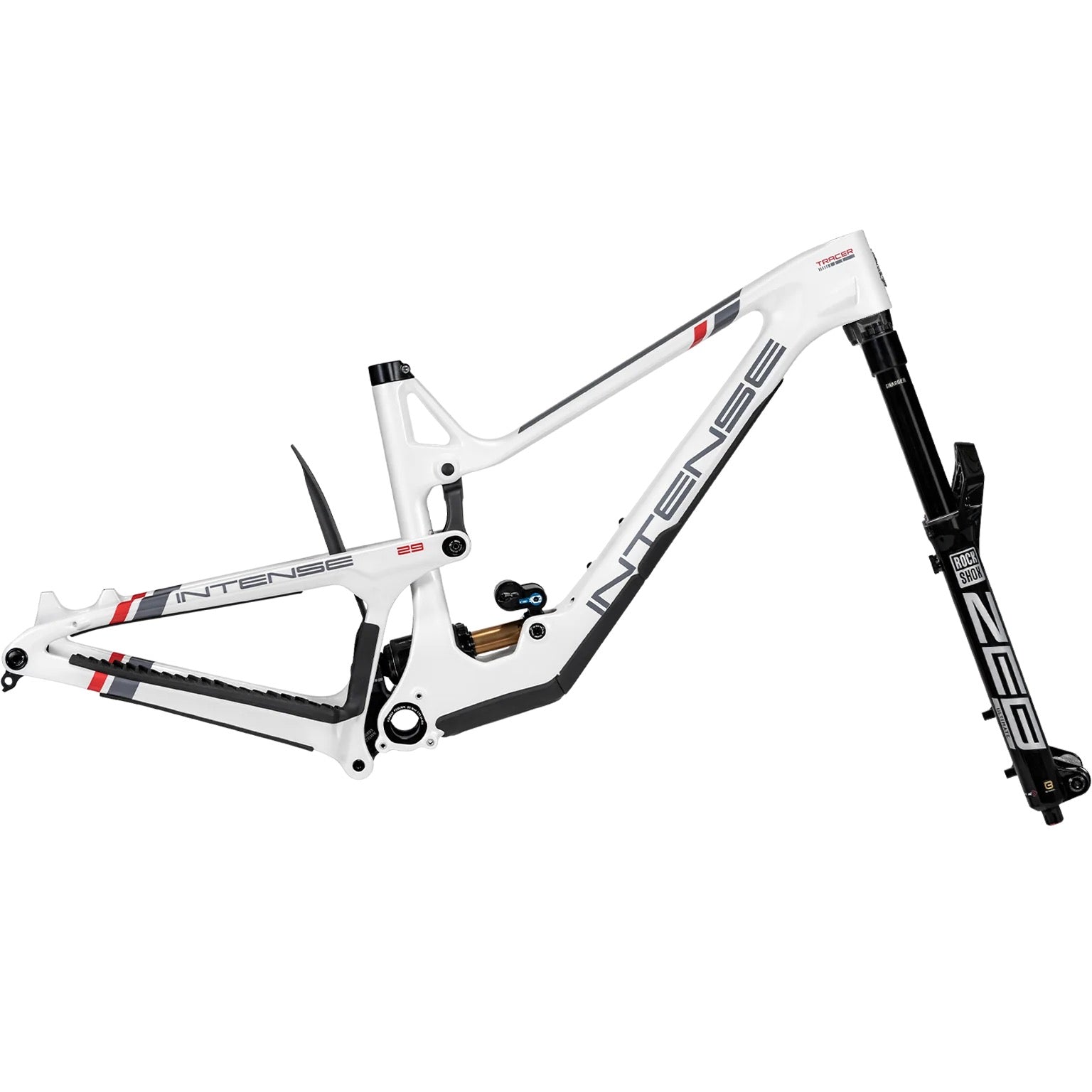

| FOX FACTORY FLOAT X2 | 4-way adjustment, 170mm travel, high/low speed compression, 2pos adjustment, kashima, 4-way monotube. |

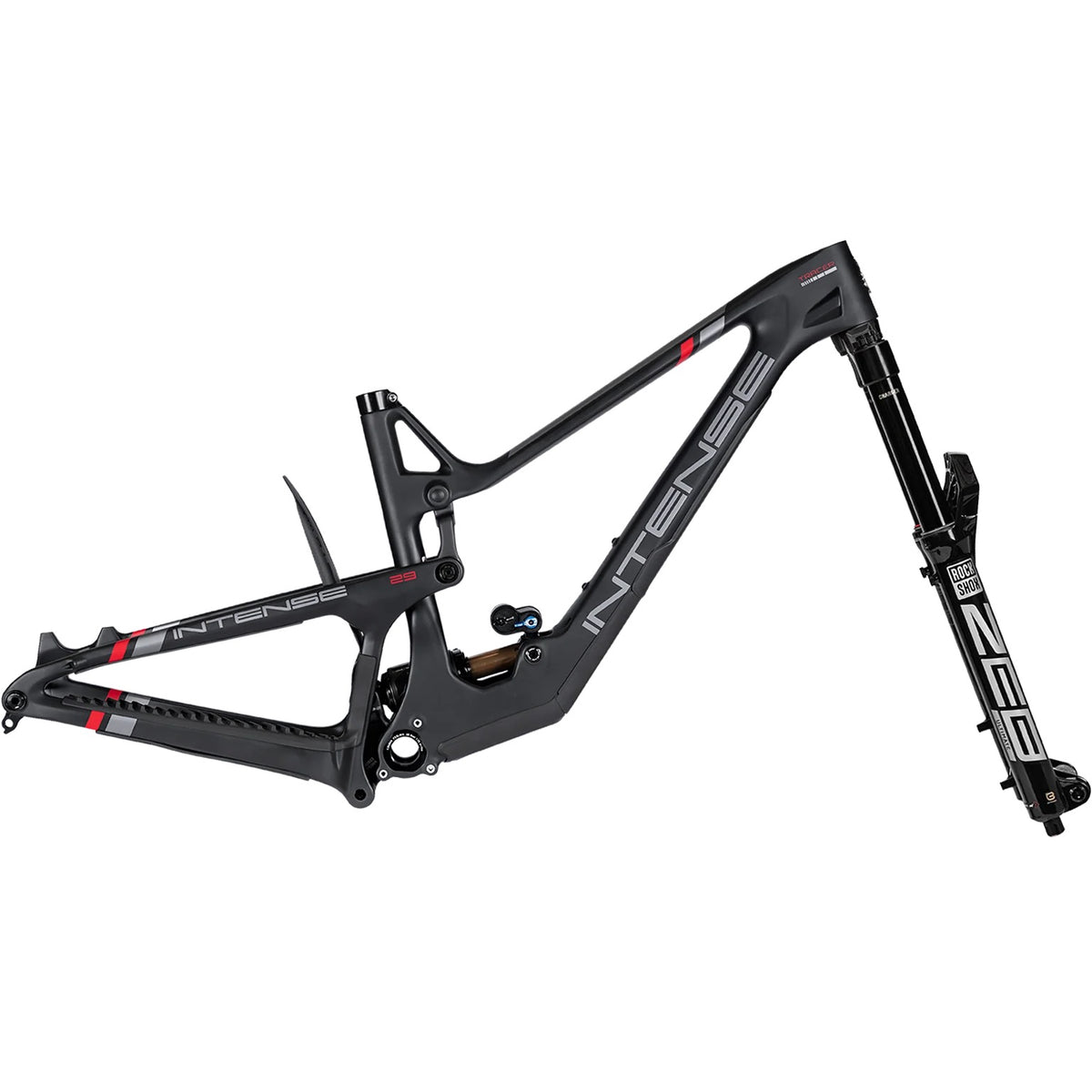

| ROCKSHOX ZEBB ULTIMATE | Charger 3.1 RC2's, 170mm travel, rebound adjustment, high/low speed compression, ButterCups, Debon Air+. |
BIKE GEOMETRY & SIZE CHART
| FRAME FIRST | MD | LG | XL |
| WEIGHT (NO SHOCK) | 7lbs 3oz / 3.26kg | 7lbs 6oz / 3.34kg | 7lbs 8oz / 3.4kg |
| SIZING | 5'4"-5'10" | 5'8"-6'2" | 6'1"-6'6" |
| REACH | 450mm | 475mm | 500mm |
| HEADTUBE ANGLE | 64° | 64° | 64° |
| SEATTUBE ANGLE (Effective) | 77.4° | 77.4° | 77.4° |
| WHEELBASE | 1236mm | 1265mm | 1295mm |
| CHAINSTAY LENGTH | 447mm | 447mm | 447mm |
| BB HEIGHT | 342mm | 342mm | 342mm |
| STACK | 631mm | 640mm | 649mm |
| TOPTUBE LENGTH | 591mm | 619mm | 647mm |
| HEADTUBE LENGTH | 100mm | 110mm | 120mm |
| BB DROP | 32.6mm | 32.6mm | 32.6mm |
| SEATTUBE ANGLE (Actual) | 72.4° | 72.4° | 72.4° |
| SEATTUBE LENGTH | 418mm | 440mm | 465mm |
| MAX SEATPOST DEPTH | 260mm | 260mm | 280mm |
| LOWER HEADSET STACK HEIGHT | 4mm | 4mm | 4mm |
| FRONT CENTER | 791mm | 820mm | 849mm |
*Based off a 584mm axle to crown, 44mm offset fork // **Based off tire OD of 750mm
