Fully assembled pickup
This is a custom build bike that starts with your frame selection and components. You will pick up your fully assembled and ready to ride bike from DT Creations.
Share on social media

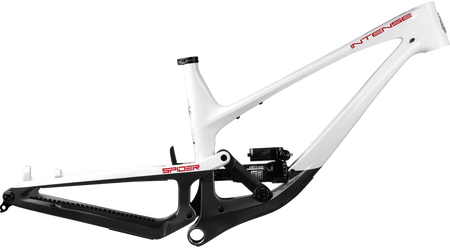

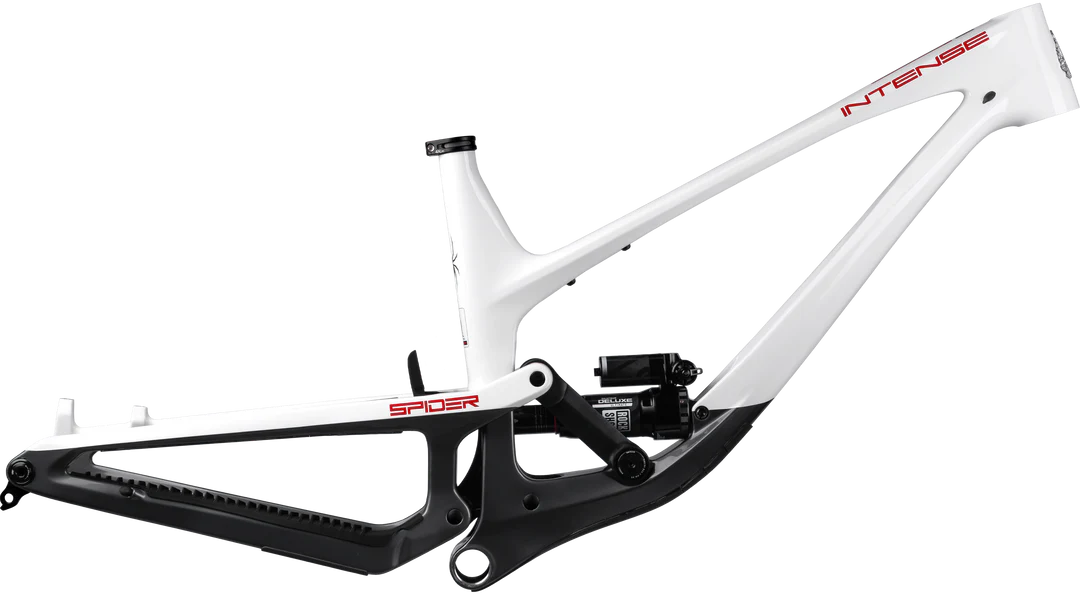

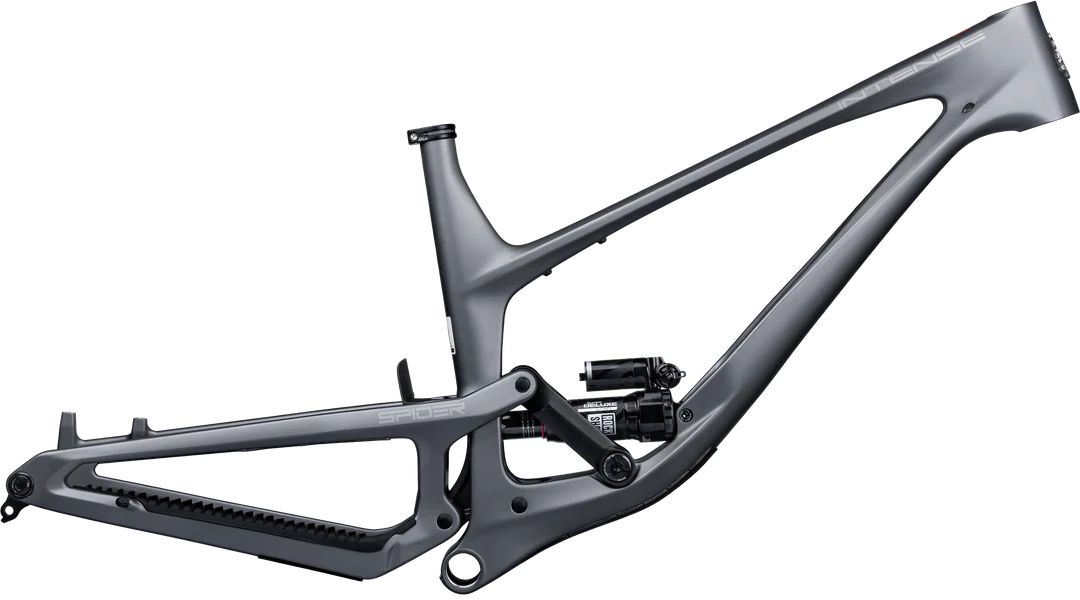

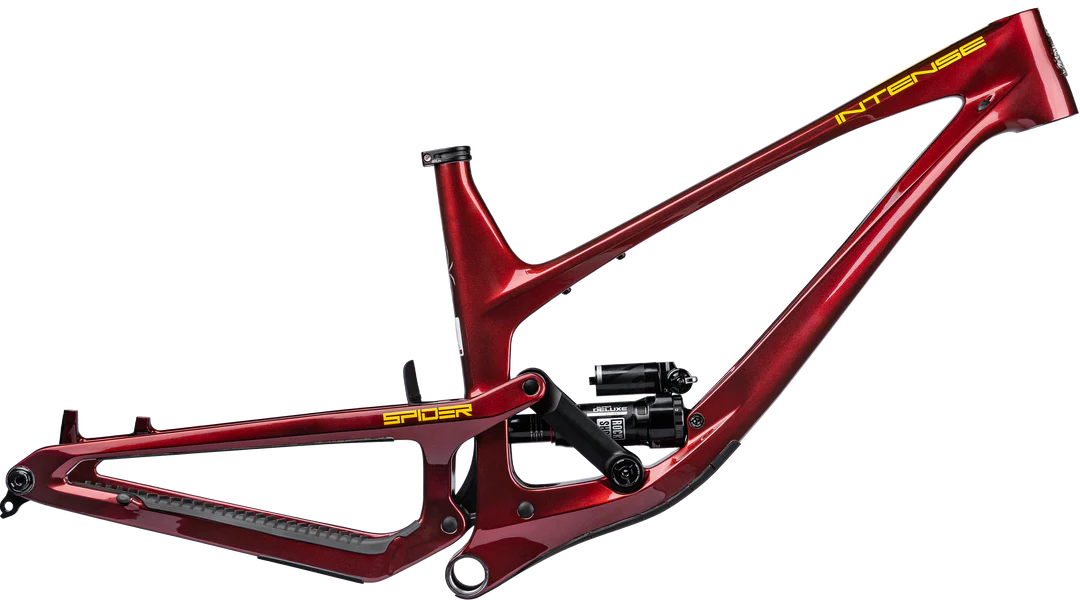

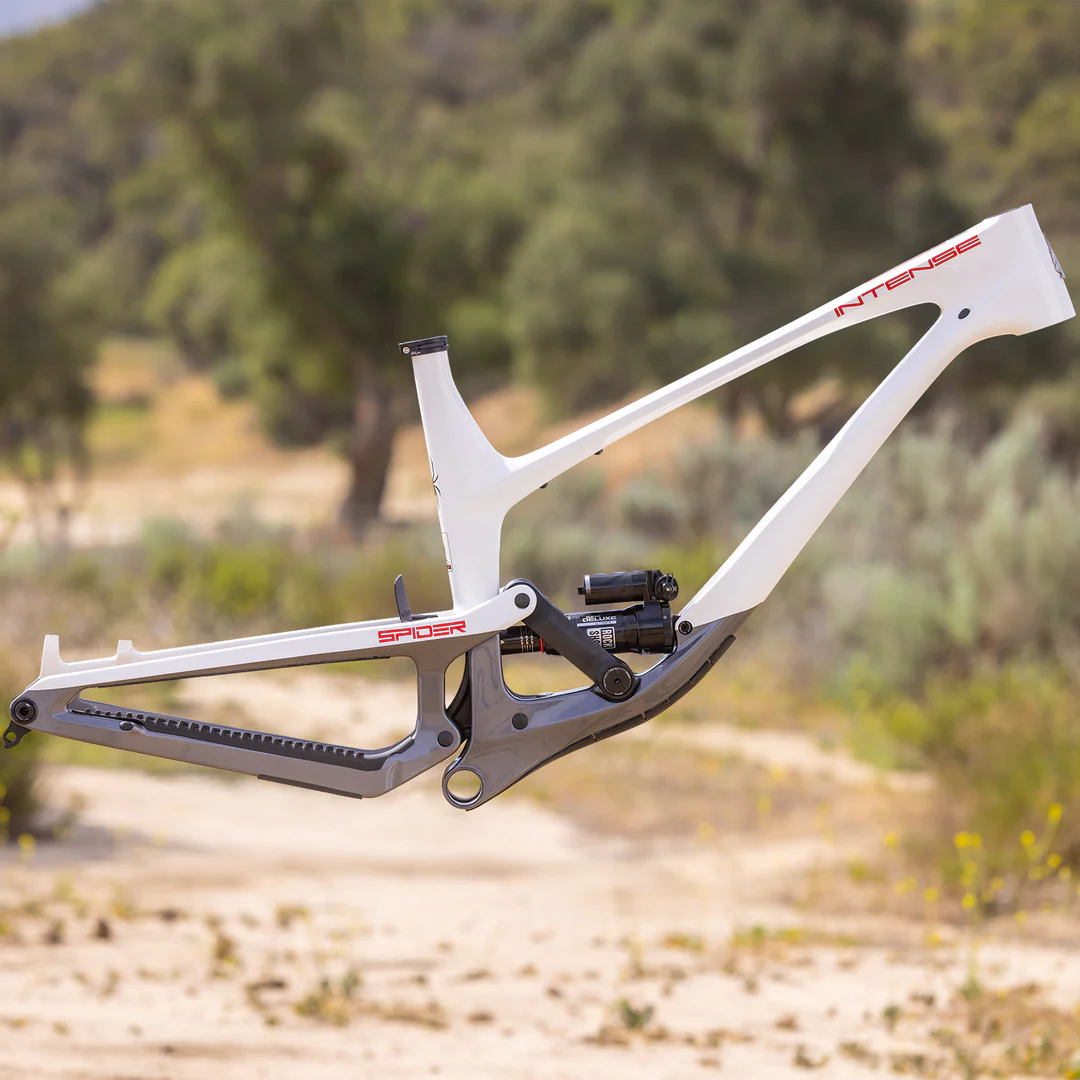

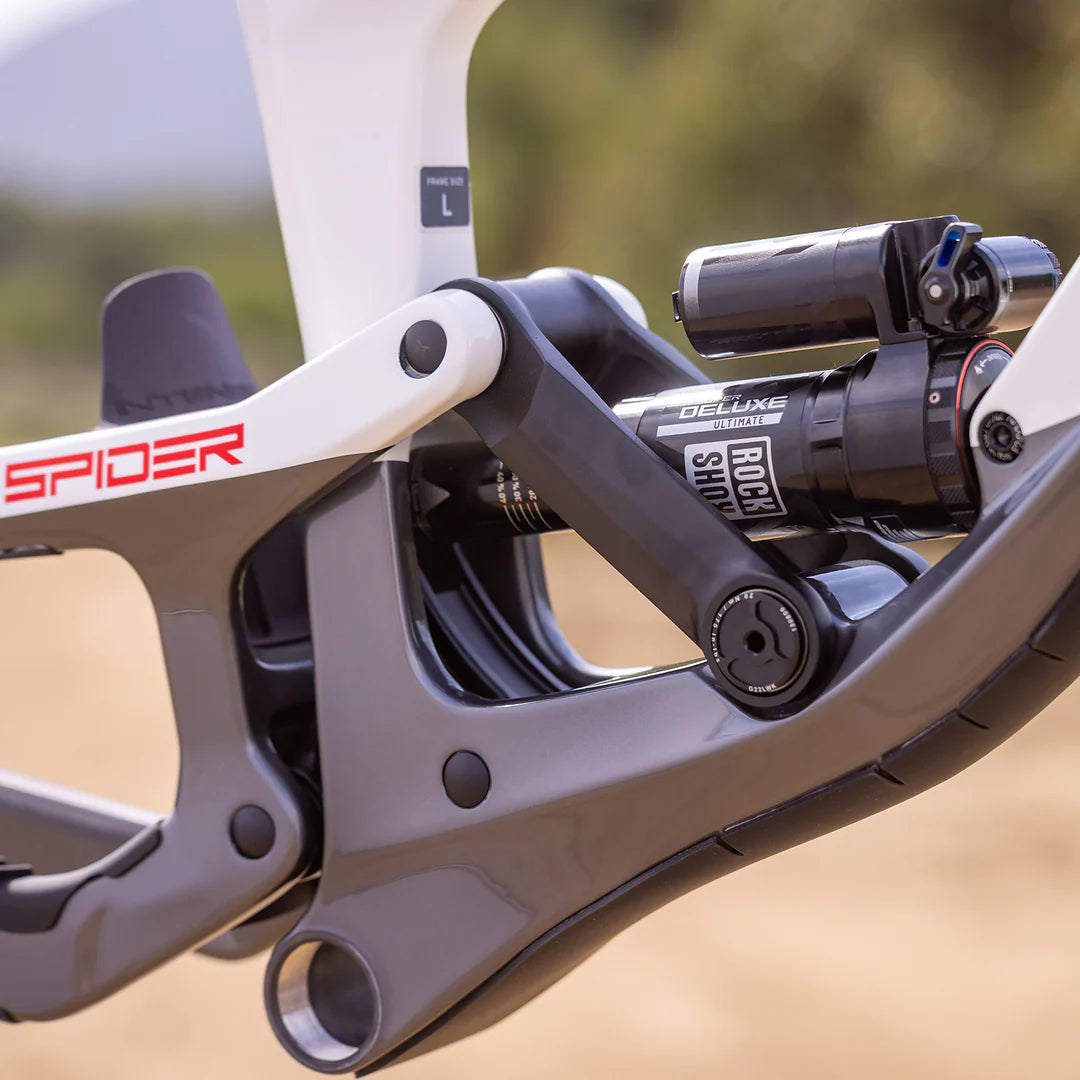

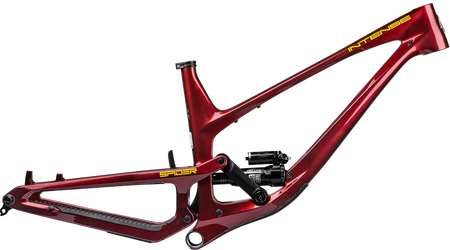

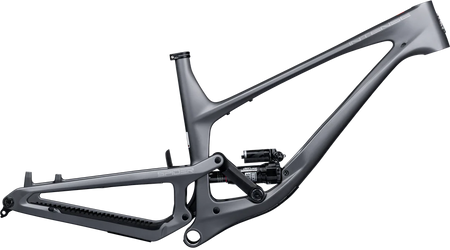

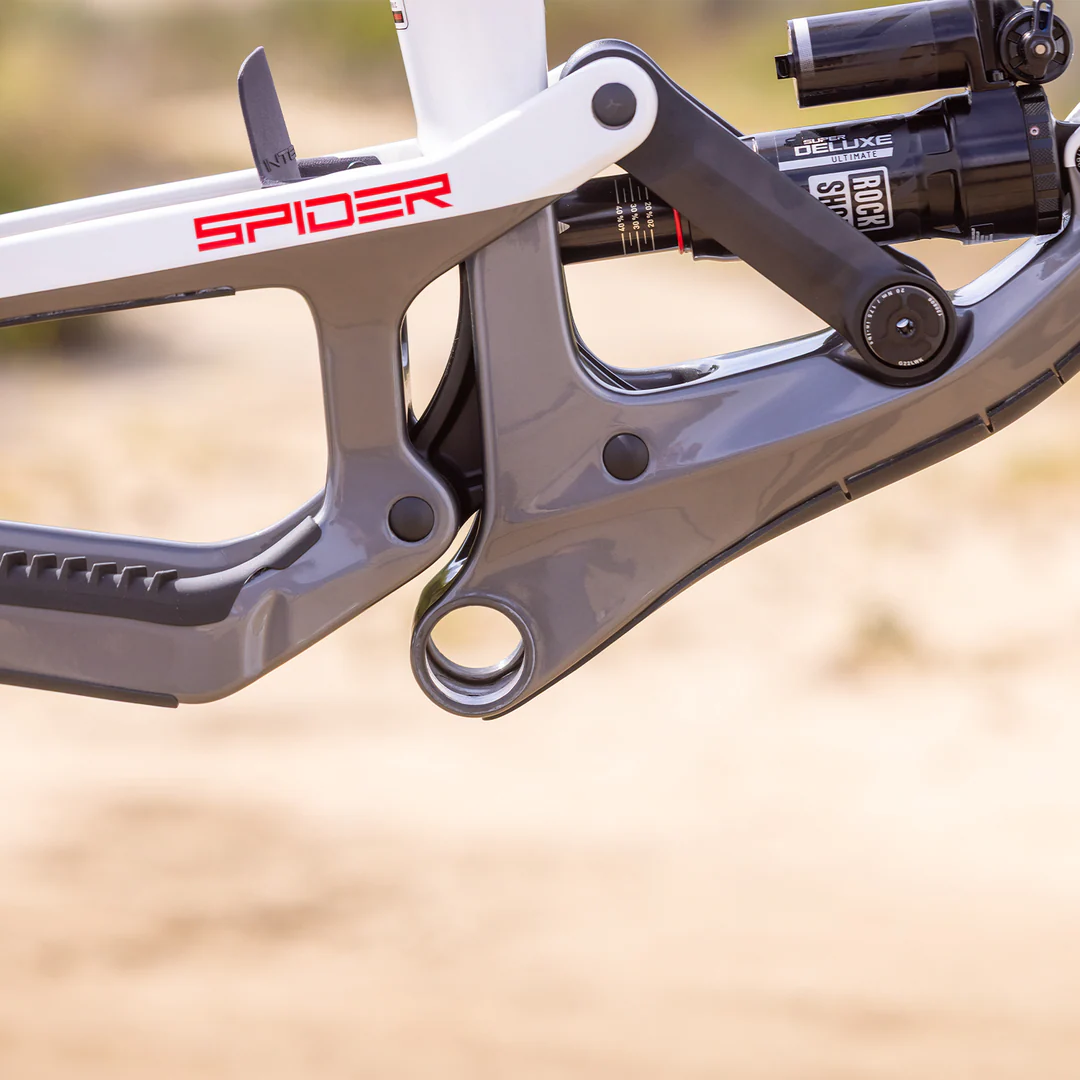

The new INTENSE Spider has arrived—reviving the “Trail Light” category within our lineup. Equipped with 29” wheels, 130mm of rear travel, and a recommended 130mm fork, this bike is built for versatility. More than just an update, the Spider is a completely reimagined carbon frame, developed from decades of experience and innovation. Whether you’re pushing for performance on long rides or seeking to smooth out dynamic terrain, the Spider is your ideal trail companion.
SPECIFICATIONS
| FRAME SIZE | SM | MD | LG | XL |
| WEIGHT (NO SHOCK) | 5lbs 12oz / 2.61kg | 6lbs / 2.72kg | 6lbs 3oz / 2.8kg | 6lbs 6oz / 2.89kg |
| SIZING | 5'0-5'6" | 5'4"-5'10" | 5'8"-6'2" | 6'1"-6'6" |
| REACH | 430mm | 455mm | 475mm | 505mm |
| HEADTUBE ANGLE | 65° | 65° | 65° | 65° |
| SEATTUBE ANGLE (Effective) | 78° | 78° | 78° | 78° |
| SEATUBE ANGLE (Actual) | 74° | 74° | 74° | 74° |
| WHEELBASE | 1177mm | 1206mm | 1230mm | 1264mm |
| CHAINSTAY LENGTH | 435mm | 435mm | 435mm | 435mm |
| BB HEIGHT | 336mm | 336mm | 336mm | 336mm |
| STACK | 602mm | 612mm | 620mm | 630mm |
| TOPTUBE LENGTH | 557mm | 585mm | 607mm | 639mm |
| HEADTUBE LENGTH | 100mm | 110mm | 120mm | 130mm |
| BB DROP | 38.5mm | 38.5mm | 38.5mm | 38.5mm |
| SEATTUBE LENGTH | 390mm | 415mm | 440mm | 465mm |
| MAX SEATPOST DEPTH | 215mm | 250mm | 275mm | 300mm |
*Based Off a 605mm axle to crown, 52mm offset fork // **Based off Front tire OD of 750mm, Rear tire OD of 711mm
