Intense Primer
Contact DT Creations Today
Couldn't load pickup availability
Fully assembled pickup
This is a custom build bike that starts with your frame selection and components. You will pick up your fully assembled and ready to ride bike from DT Creations.
Share on social media

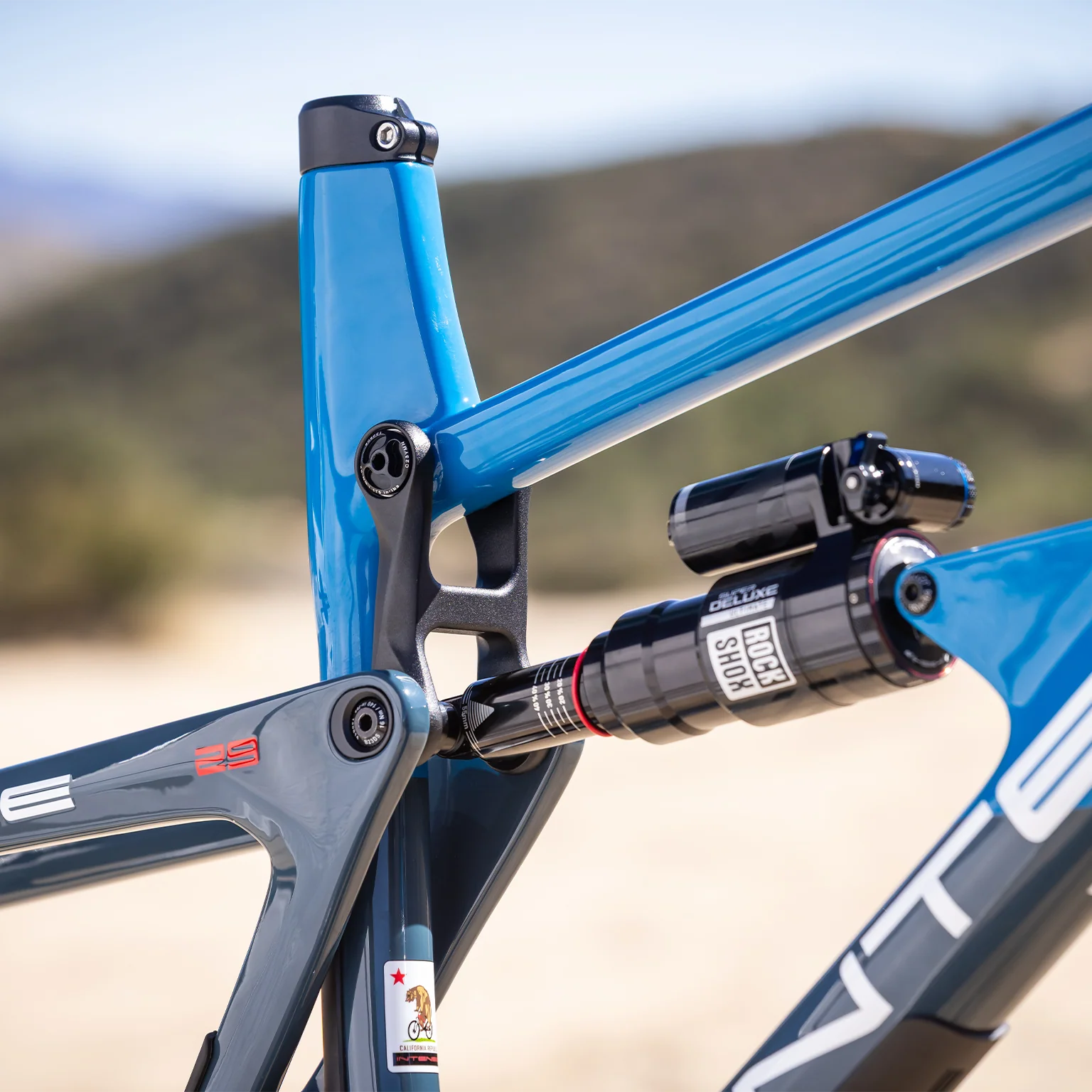

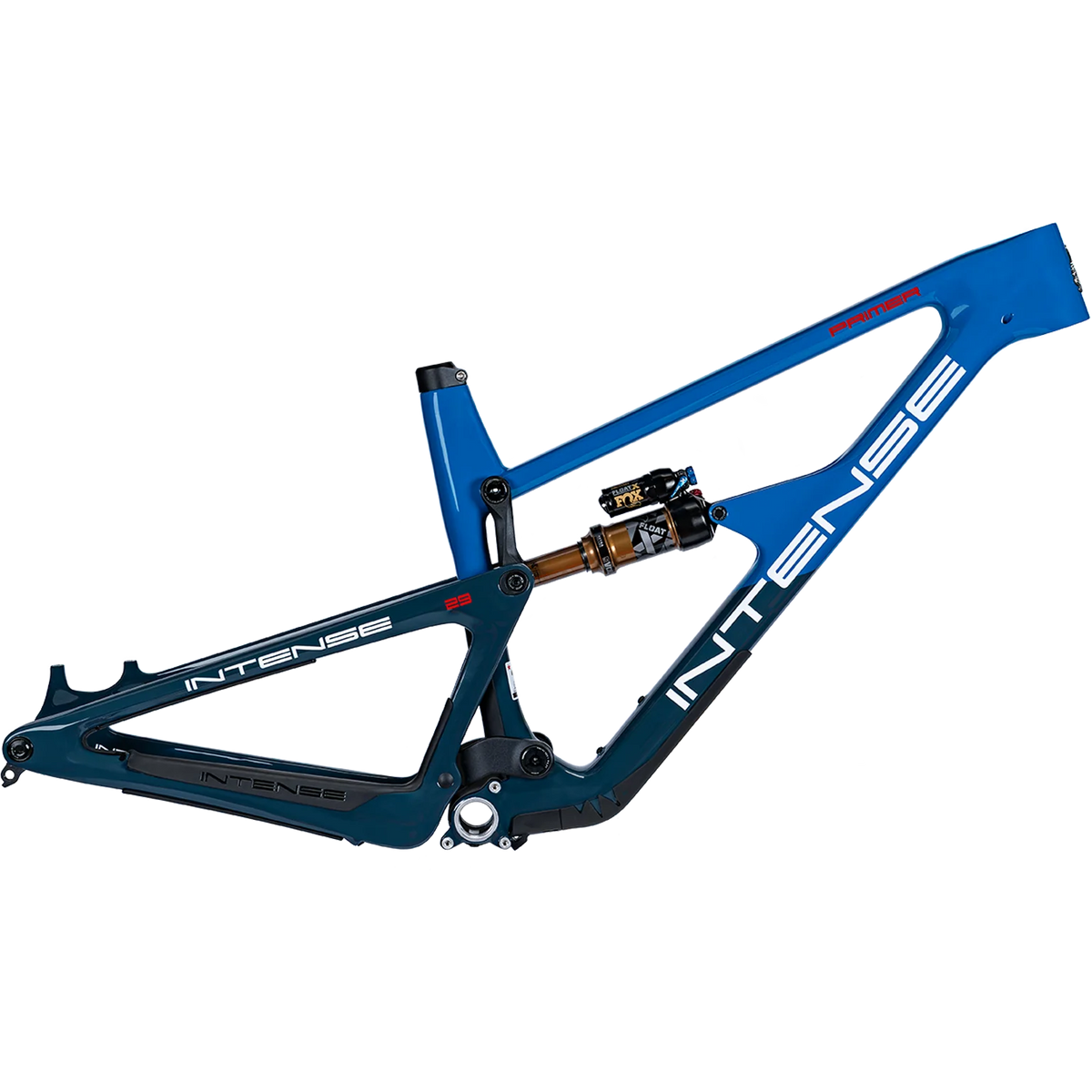

At first glance, the new Primer may resemble its predecessors, but the real magic lies beneath the surface. This latest iteration delivers unmatched performance with a reinforced carbon fiber layup and a newly redesigned, externally mounted top link. The wider top link enhances frame stiffness, providing a more responsive and confident ride on the trail. With 150mm front and 150mm rear travel, the Primer is engineered to excel on every trail, offering pure perfection with every ride.

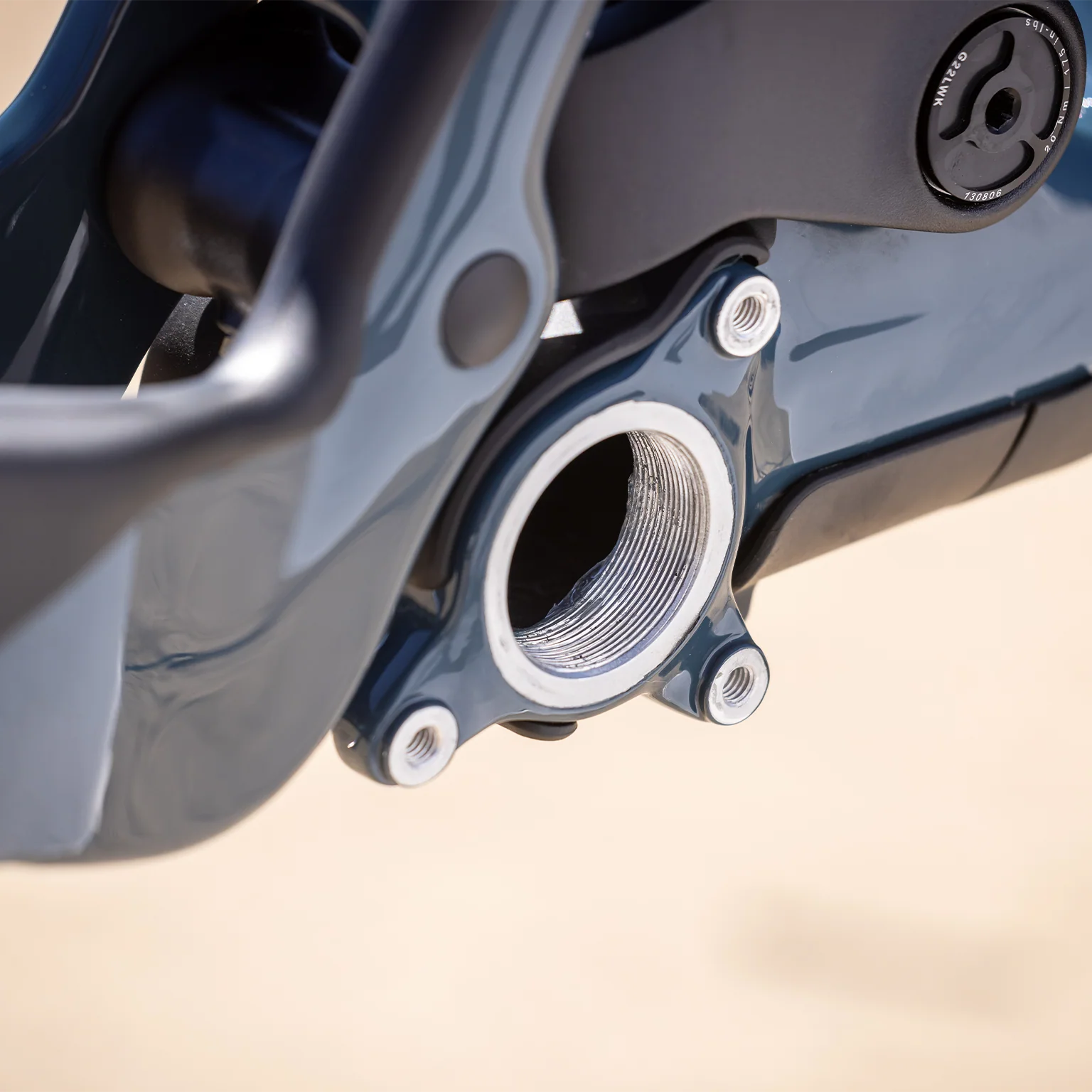

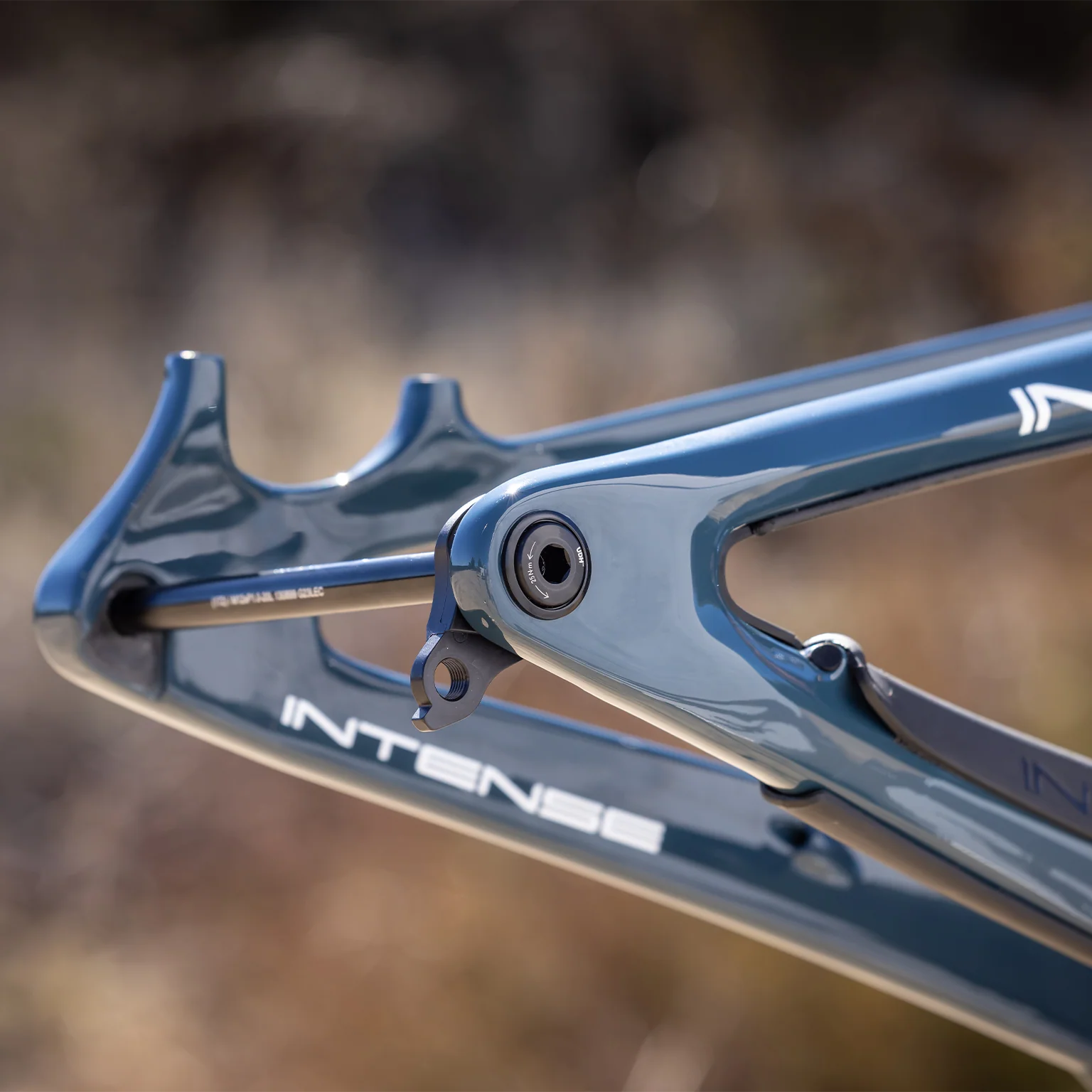

We’ve reimagined our classic Primer to deliver the ultimate trail bike for 2025. Striking the perfect balance between stiffness and compliance is a craft we’ve mastered, optimizing the carbon lay-up to increase lateral stiffness around the bottom bracket while maintaining vertical compliance for a smoother, more controlled ride. The updated geometry features a steeper seat tube angle and longer reach, aligning with modern trail standards. We’ve also enhanced the rear triangle, which now comes standard with UDH that is T-Type compatibile. To complete the package, we partnered with FOX and Rockshox to custom-tune the rear shock, ensuring seamless integration with our JS Tuned Suspension Design. Paired with 150mm front travel and 150mm rear, the Primer is ready to tackle any trail with confidence and precision.
SPECIFICATIONS
| FRAME FIRST | SM | MD | LG | XL |
| WEIGHT (NO SHOCK) | 5lbs 10oz / 2.55kg | 5lbs 13oz / 2.63kg | 6lbs / 2.72kg | 6lbs 3oz / 2.80kg |
| SIZING | 5'0-5'6" | 5'4"-5'10" | 5'8"-6'2" | 6'1"-6'6" |
| REACH | 427mm | 456mm | 483mm | 507mm |
| HEADTUBE ANGLE | 65.6° | 65.6° | 65.6° | 65.6° |
| SEATTUBE ANGLE (Effective) | 77° | 77° | 77° | 77° |
| WHEELBASE | 1188mm | 1217mm | 1247mm | 1279mm |
| CHAINSTAY LENGTH | 440mm | 440mm | 440mm | 440mm |
| BB HEIGHT | 344mm | 344mm | 344mm | 344mm |
| STACK | 568mm | 597mm | 626mm | 656mm |
| TOPTUBE LENGTH | 618mm | 618mm | 627mm | 645mm |
| HEADTUBE LENGTH | 90mm | 90mm | 100mm | 120mm |
| BB DROP | 31mm | 31mm | 31mm | 31mm |
| SEATTUBE ANGLE (Actual) | 73° | 73° | 73° | 73° |
| SEATTUBE LENGTH | 405mm | 420mm | 440mm | 465mm |
| MAX SEATPOST DEPTH | 255mm | 255mm | 280mm | 280mm |
| LOWER HEADSET STACK HEIGHT | 12mm | 12mm | 12mm | 12mm |
| FRONT CENTER | 749mm | 778mm | 808mm | 840mm |
*Based off a 584mm axle to crown, 44mm offset fork // **Based off tire OD of 750mm front and 709mm rear
