Intense M1

(0)
$2,999.00
Color
Size
Suspension

Contact DT Creations Today

Email (945) 250-8646

Fully assembled pickup

  • American Express
  • Apple Pay
  • Diners Club
  • Discover
  • Google Pay
  • Mastercard
  • PayPal
  • Shop Pay
  • Venmo
  • Visa

This is a custom build bike that starts with your frame selection and components. You will pick up your fully assembled and ready to ride bike from DT Creations.

Share on social media

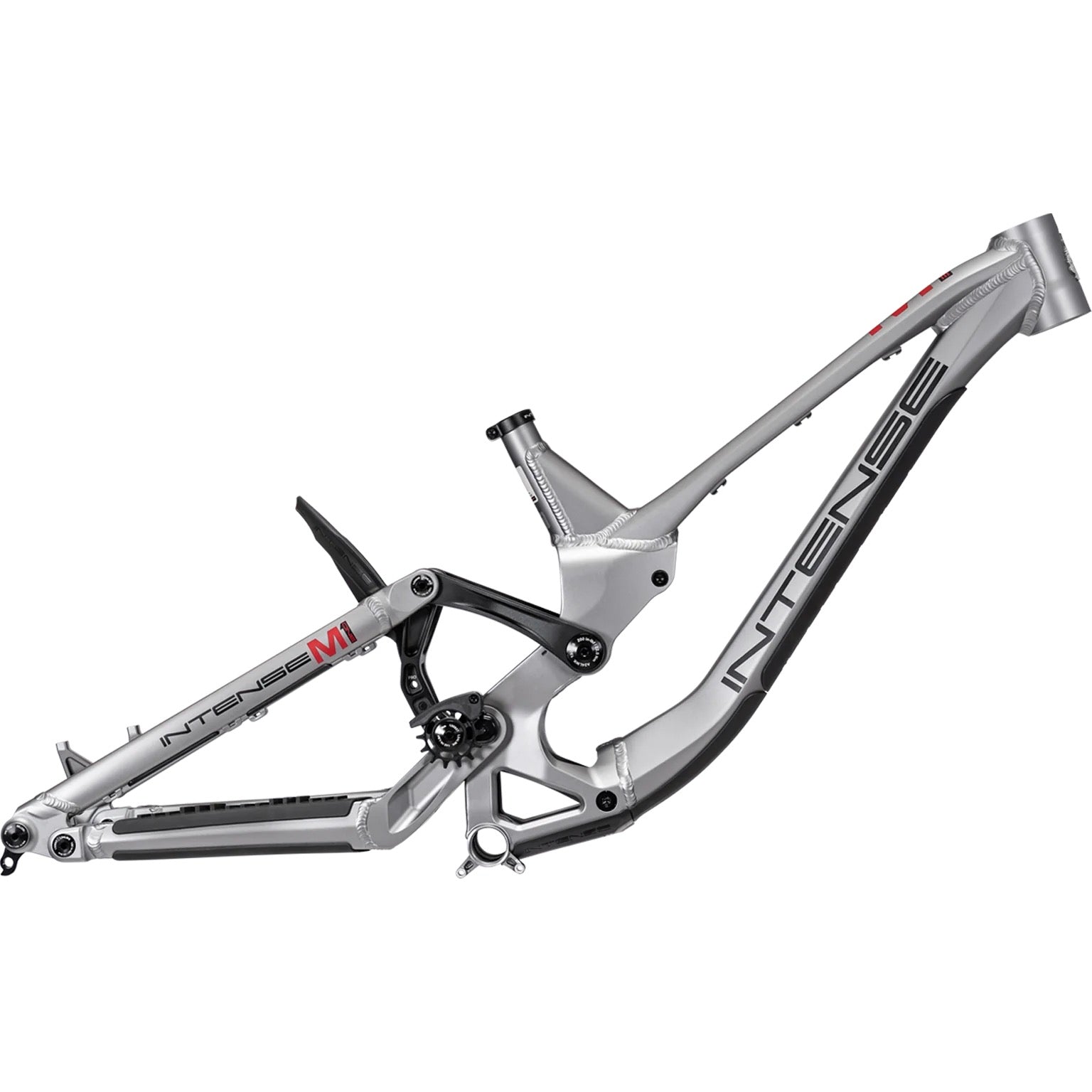

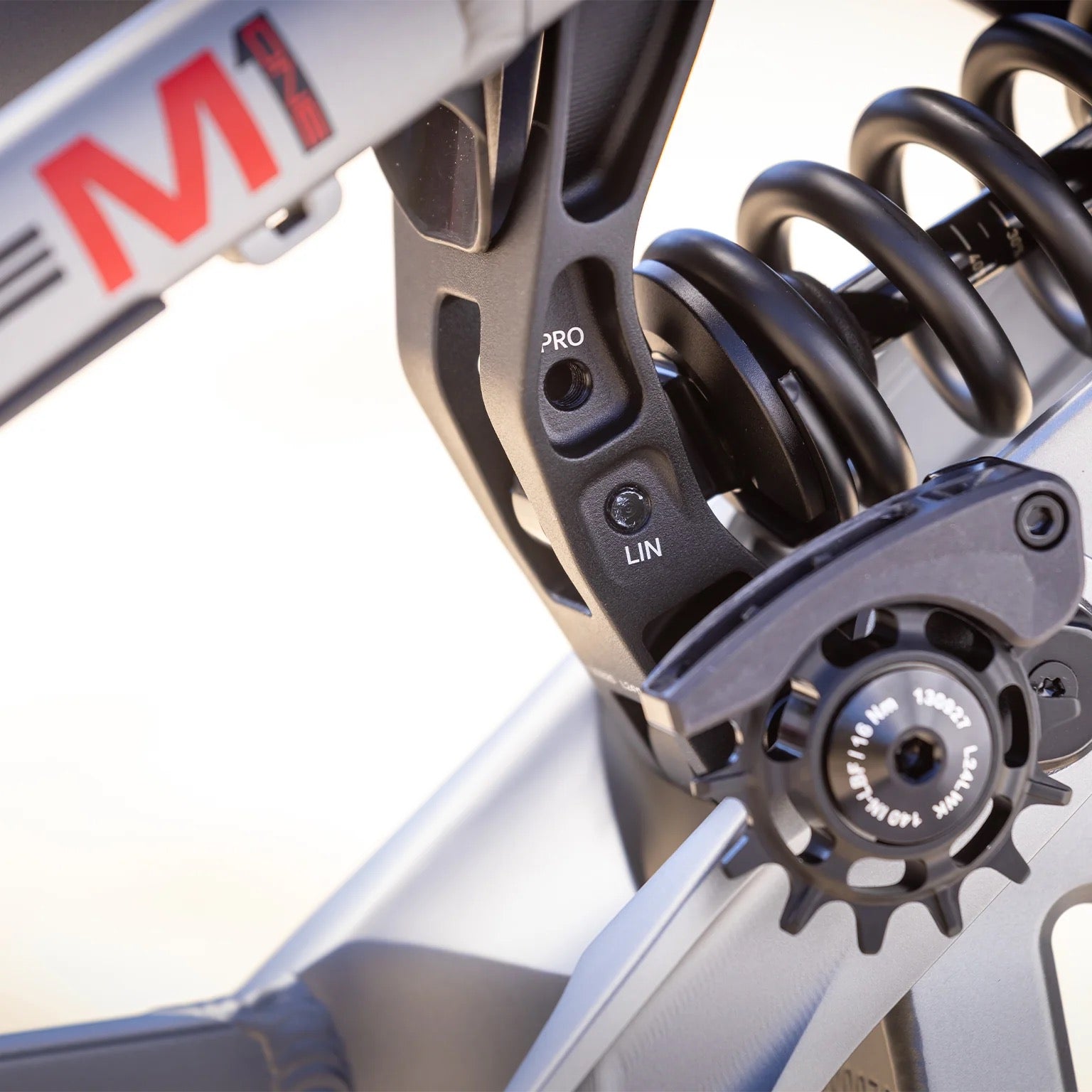

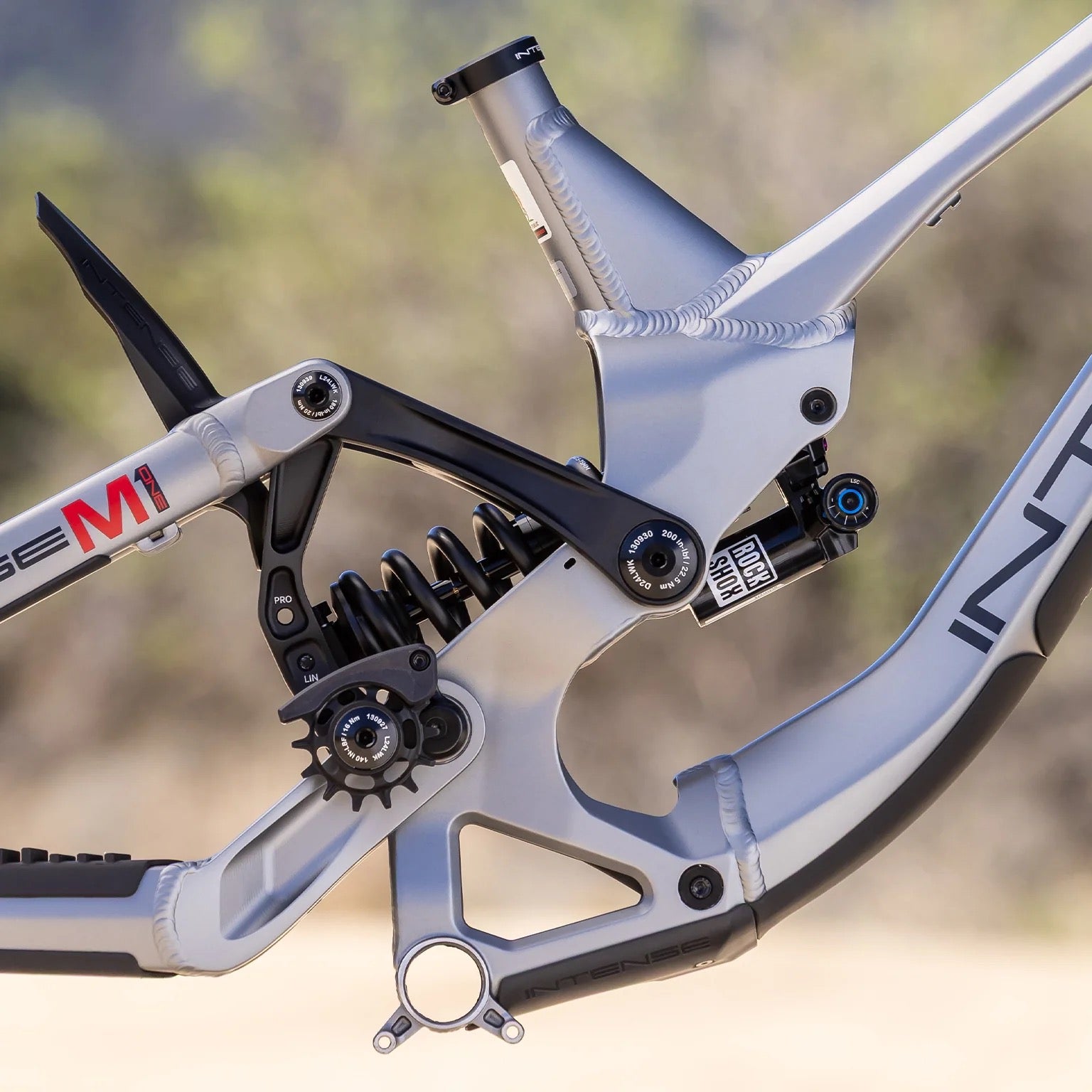

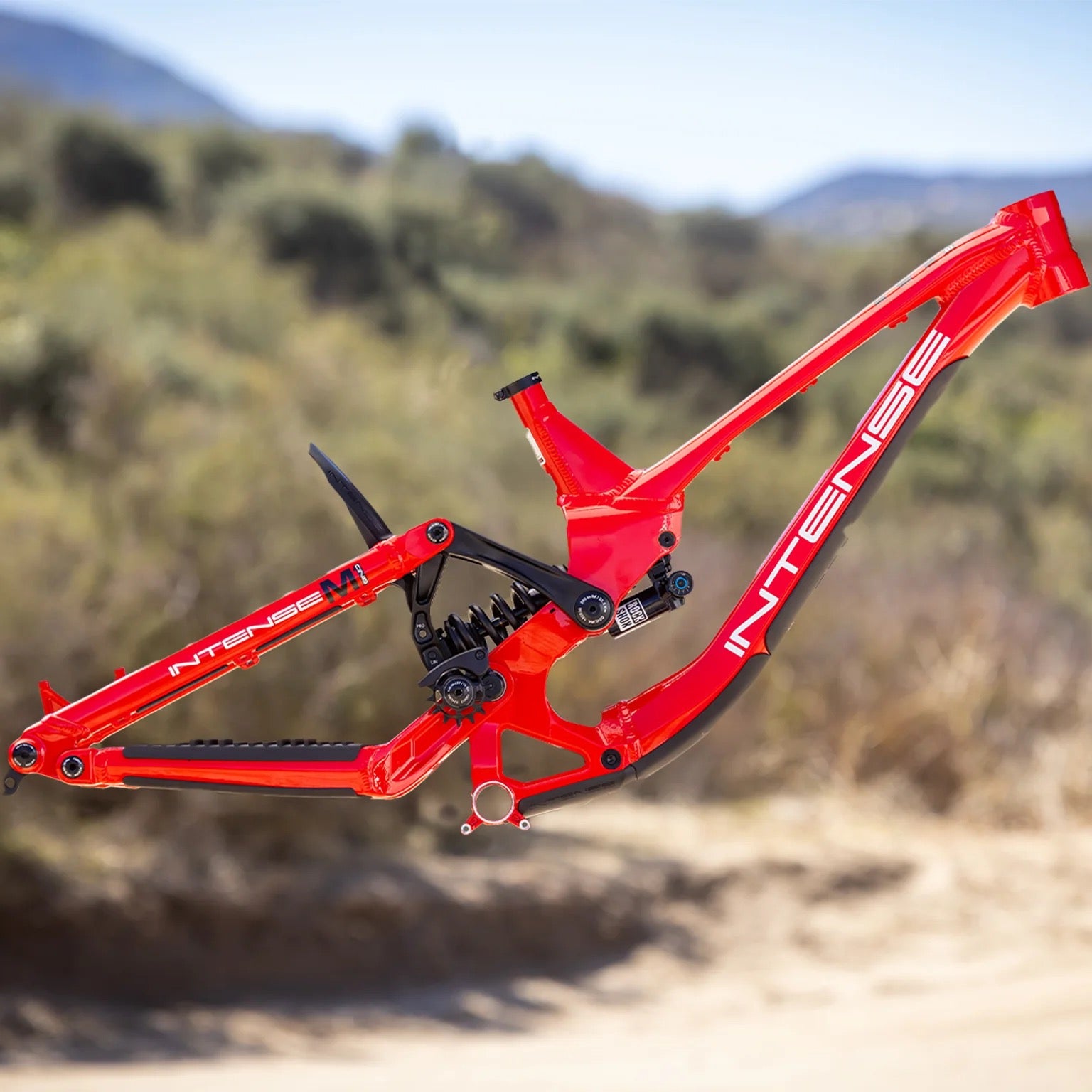

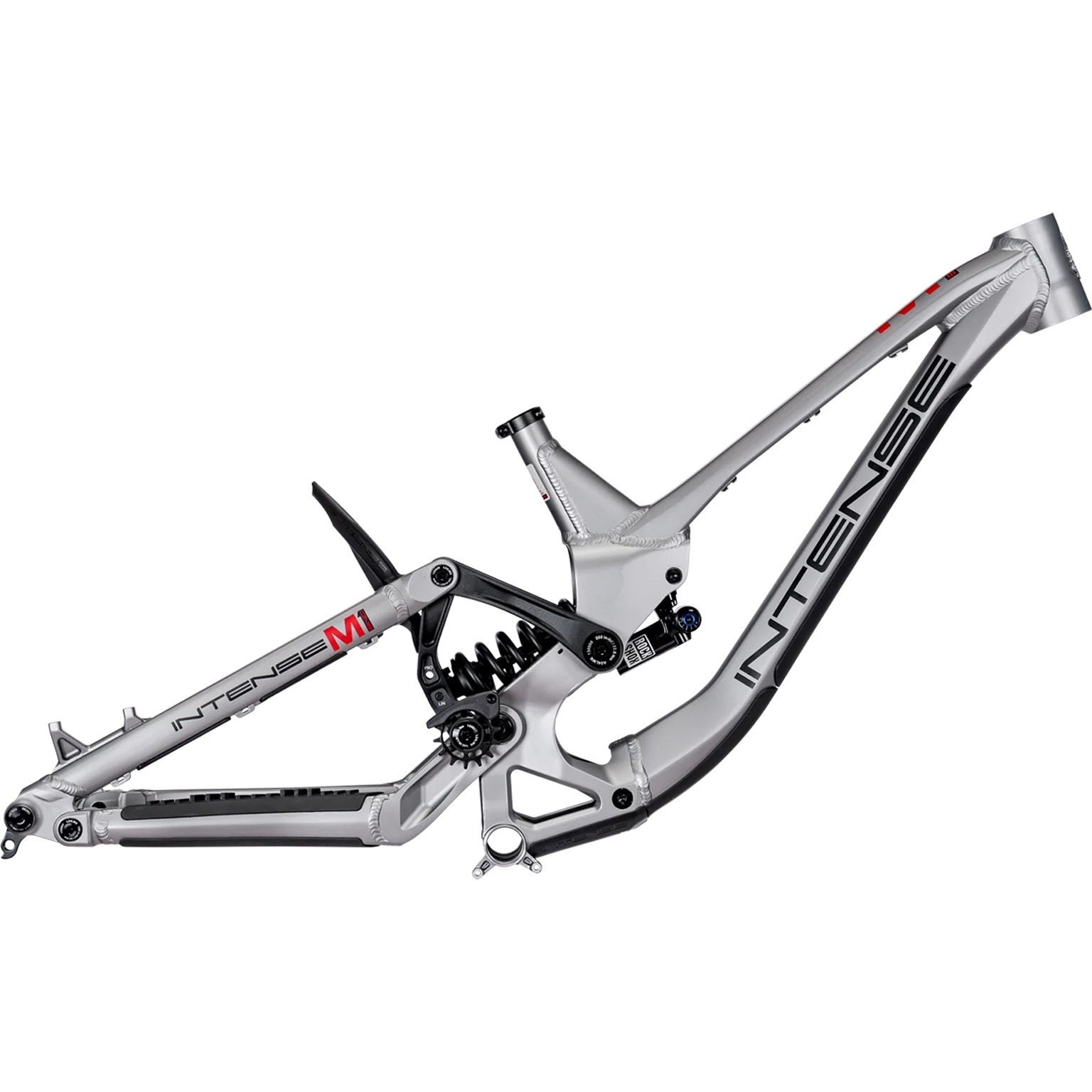

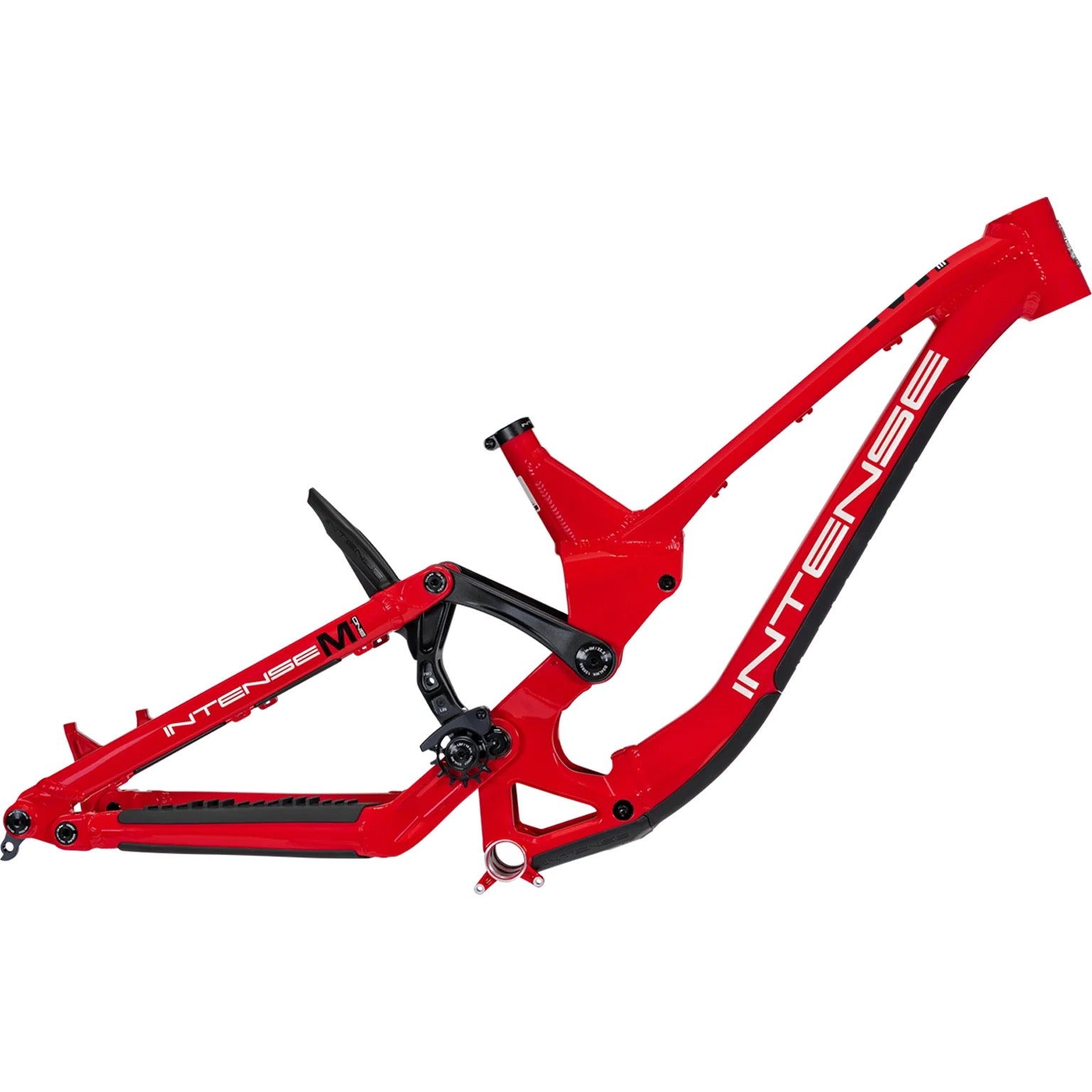

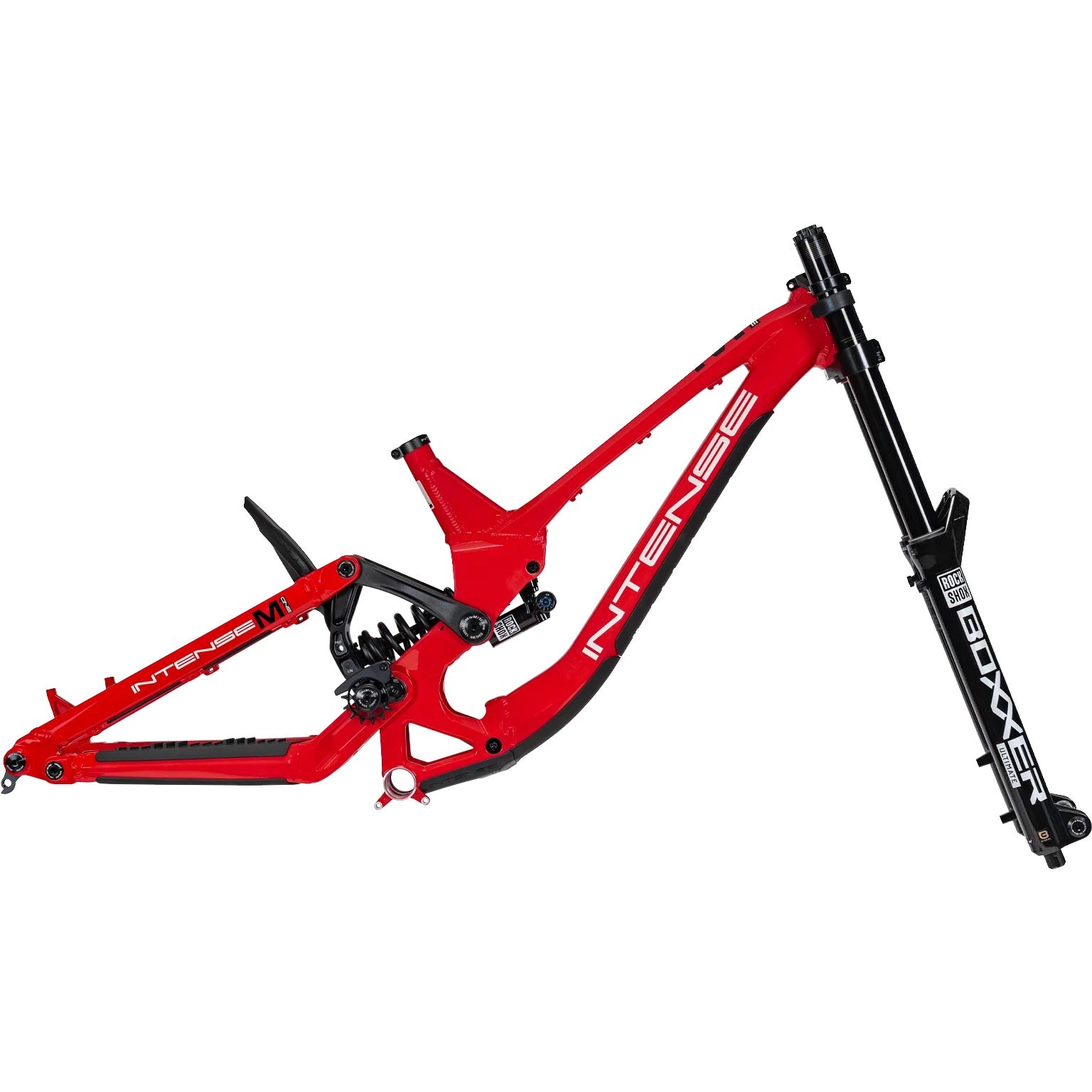

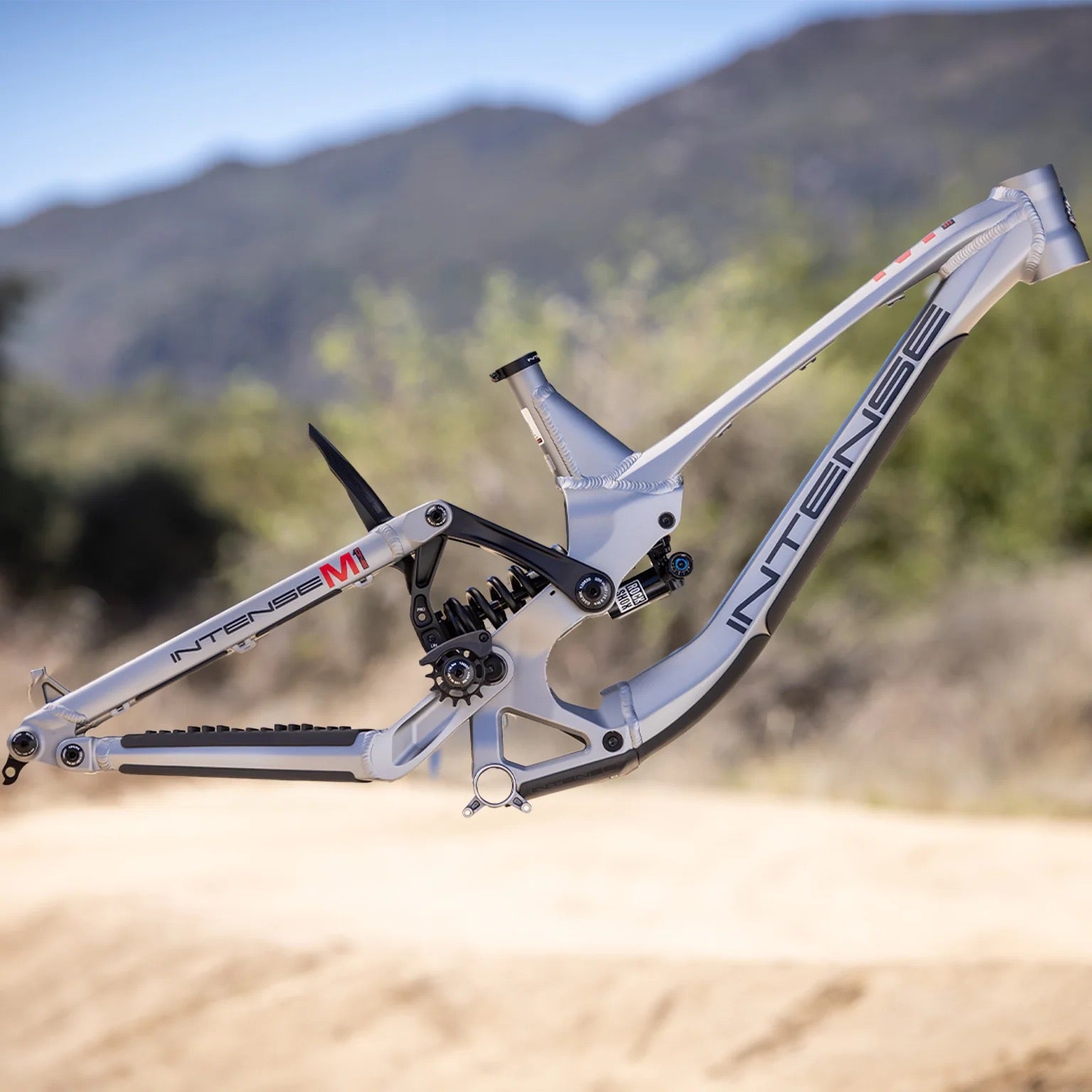

The M1 has 203mm (linear) / 212mm (progressive) of rear travel and is built around a 6-link, high-pivot, 6061-T6 aluminum frame. The M1 is a race-proven winner. Designed for a 279 wheelset, developed, and perfected by our engineers and the INTENSE Factory Racing team on the World Cup circuit to be the fastest downhill bike.

*Note: The fork must be purchased with a rear shock. You can not purchase just the frame and fork. The frame does not qualify for a toolkit.

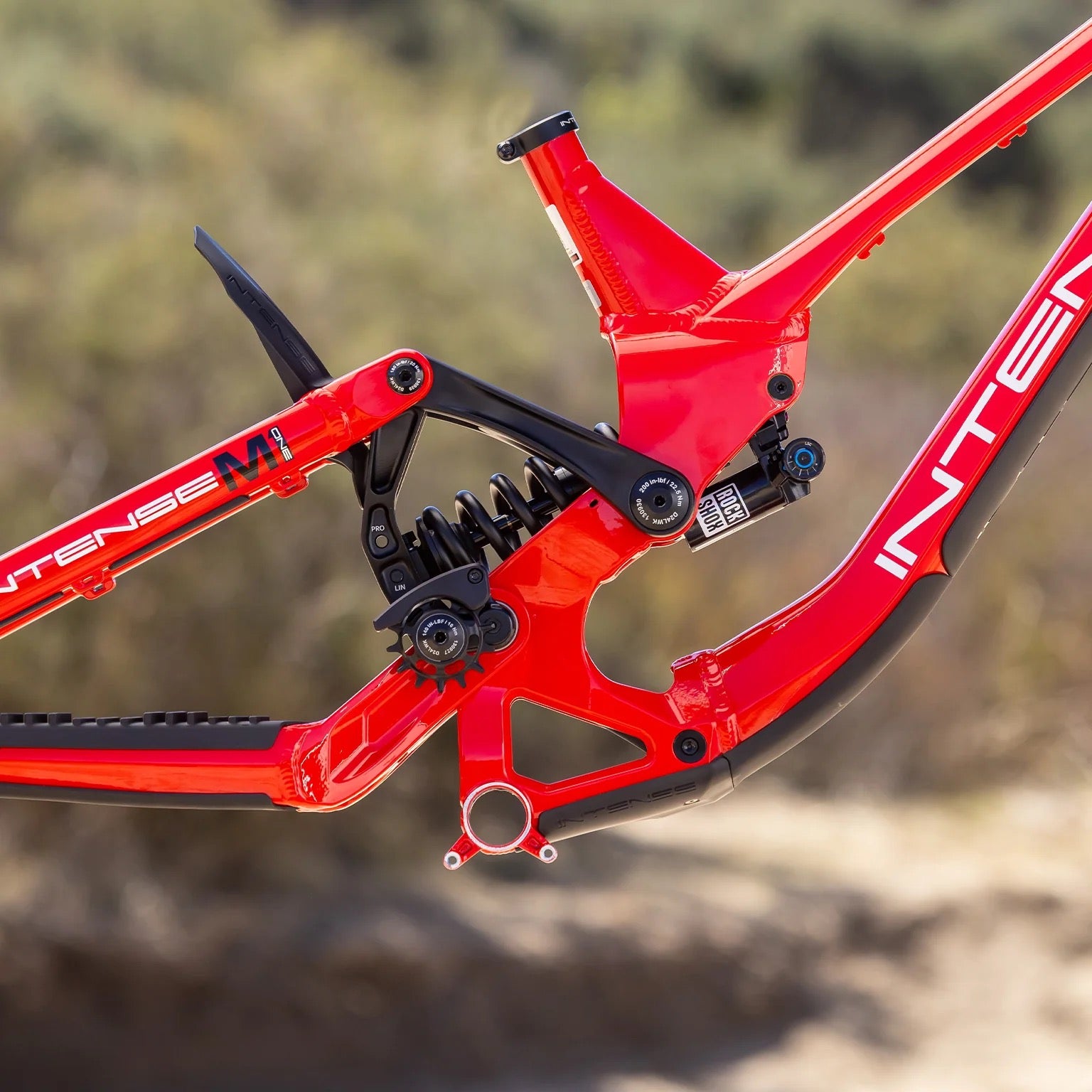

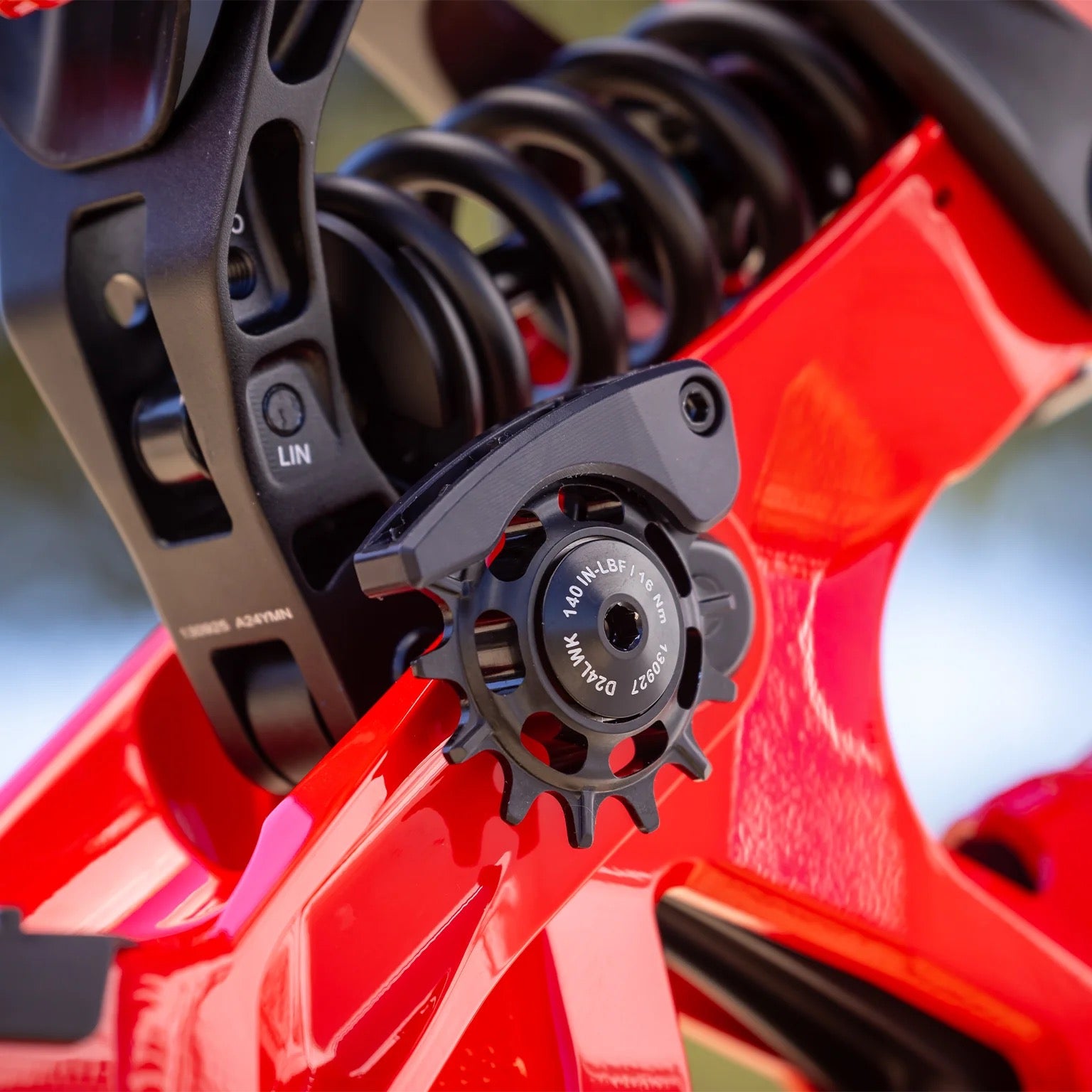

During the initial development stages, the 6-link high pivot design allowed us to isolate, adjust and customize every element of the M1’s ride characteristics. Our goal was to design a bike that would excel in all DH conditions, on any track, and honor the name and racing pedigree of our original M1 frames that we produced in the 1990s. With the new M1 we’ve created a bike that can smash through the roughest terrain, generate speed, accelerate efficiently when pedaling and stay active under braking.

IN STORE PICKUP ONLY


BUILD SPECS
BUILD M1 FACTORY FRAME

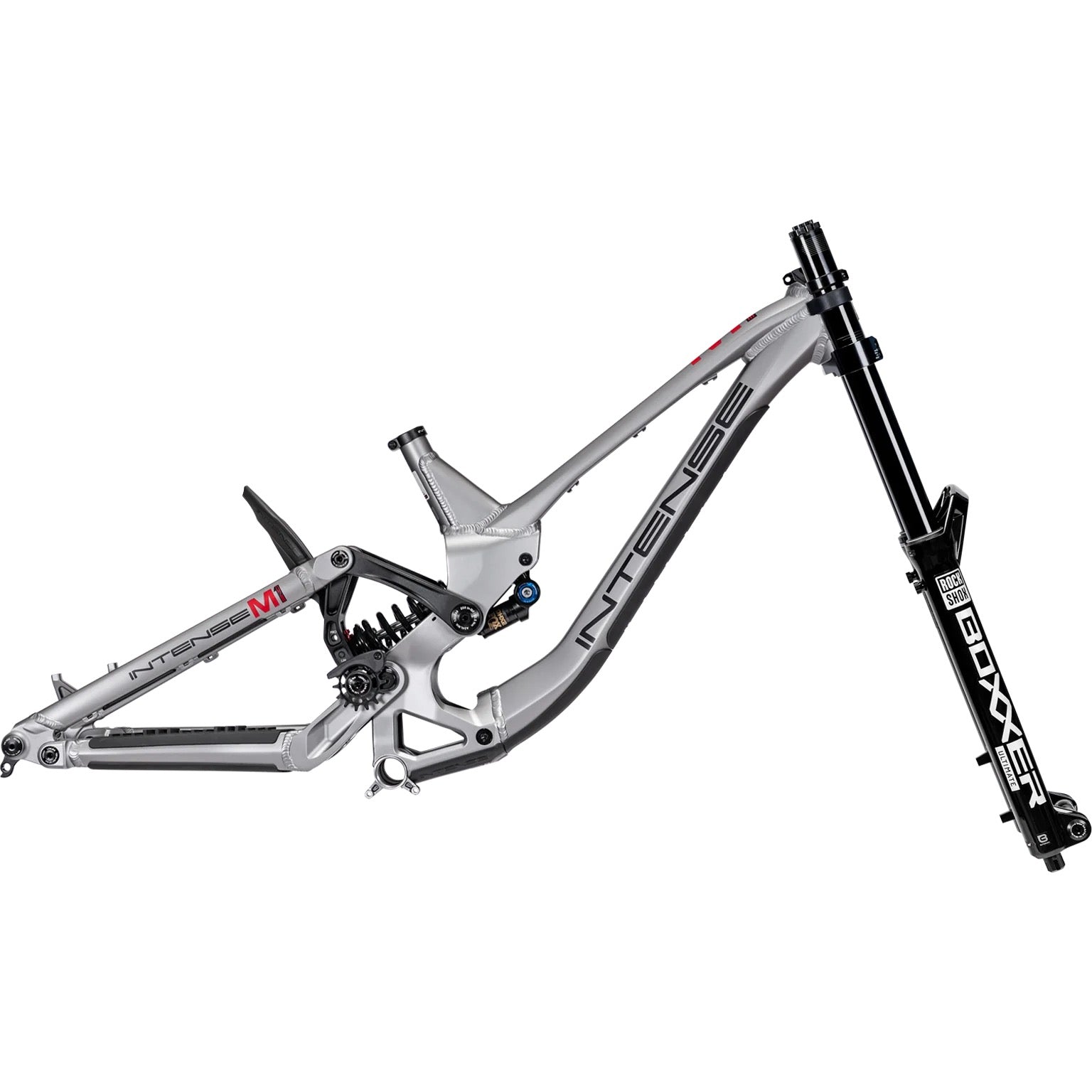

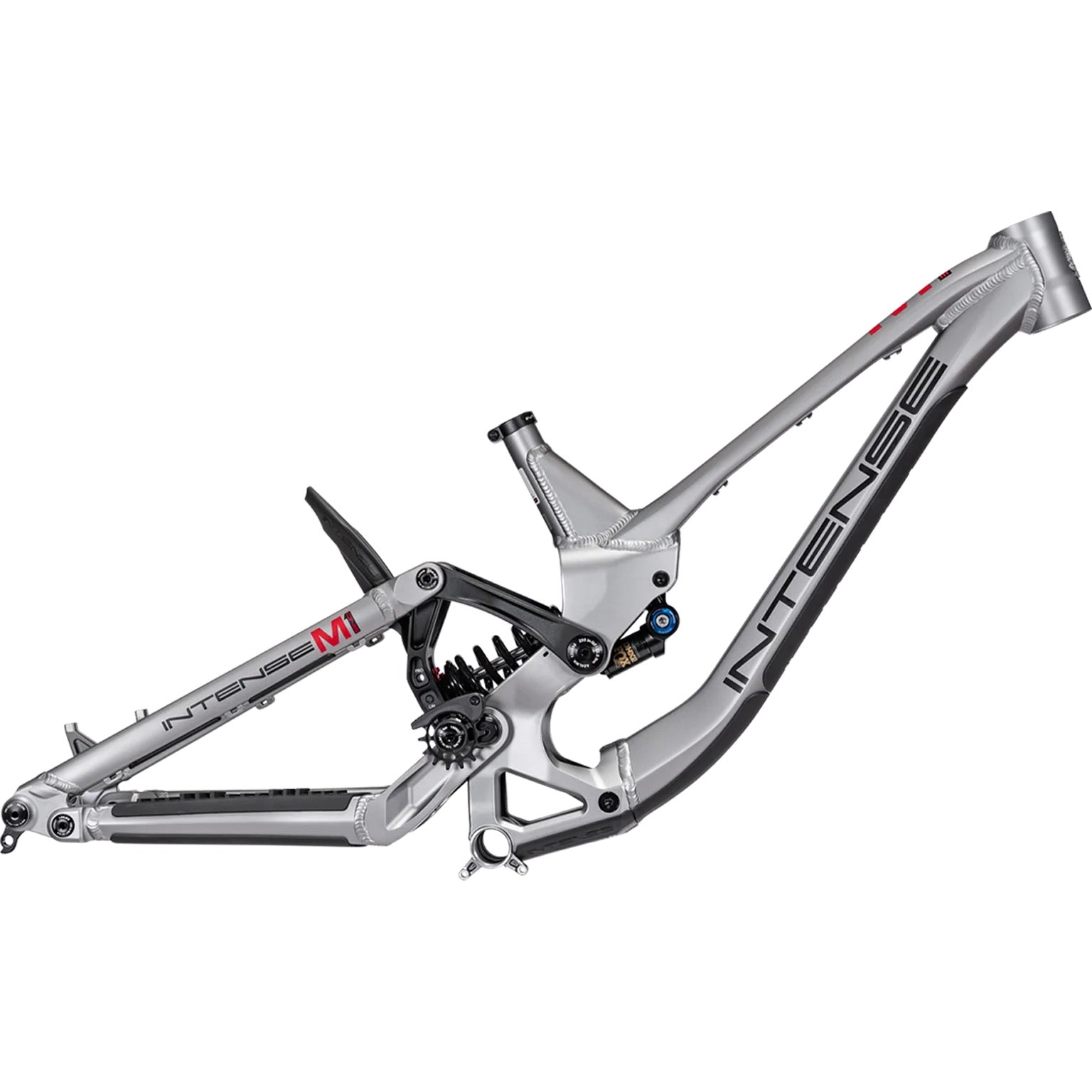

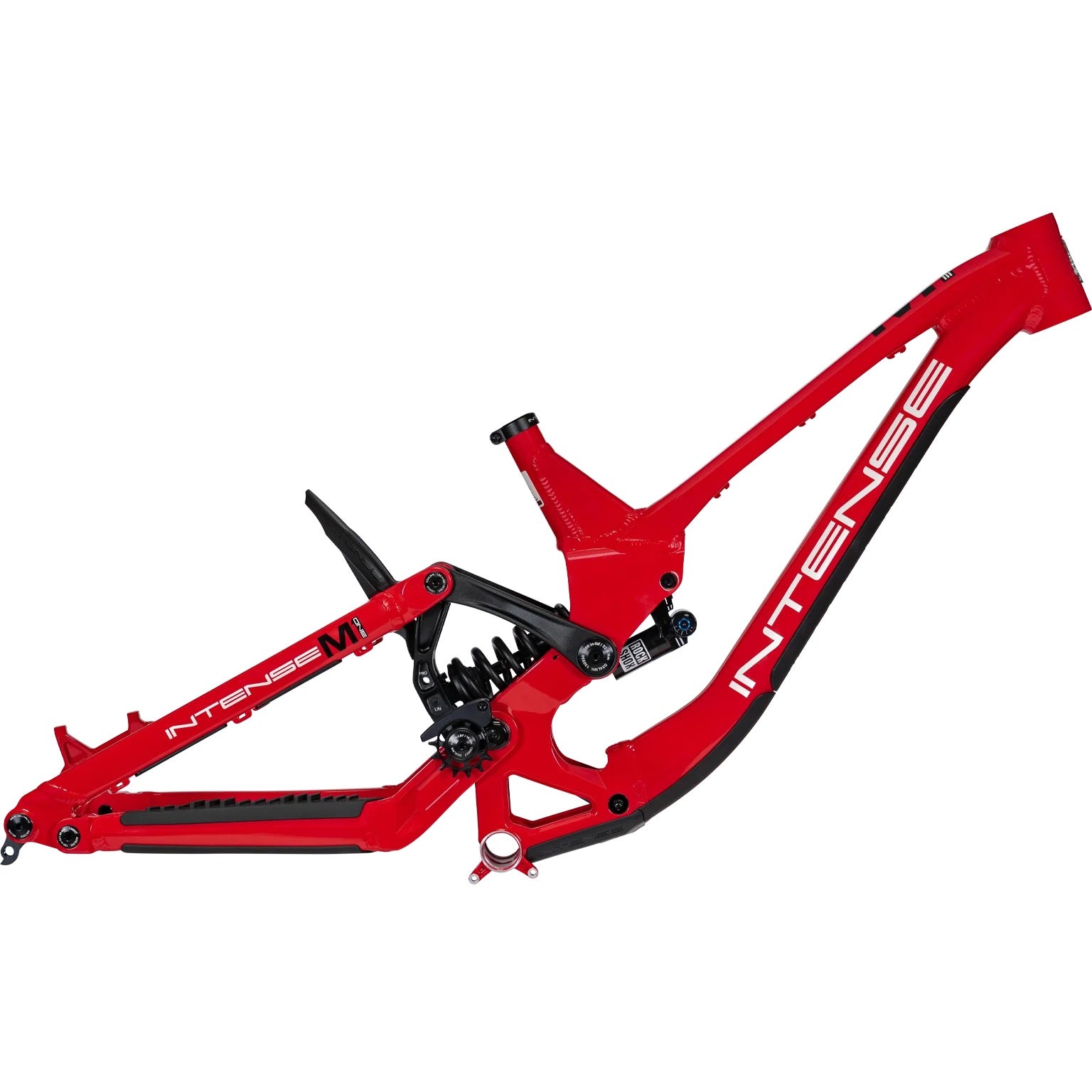

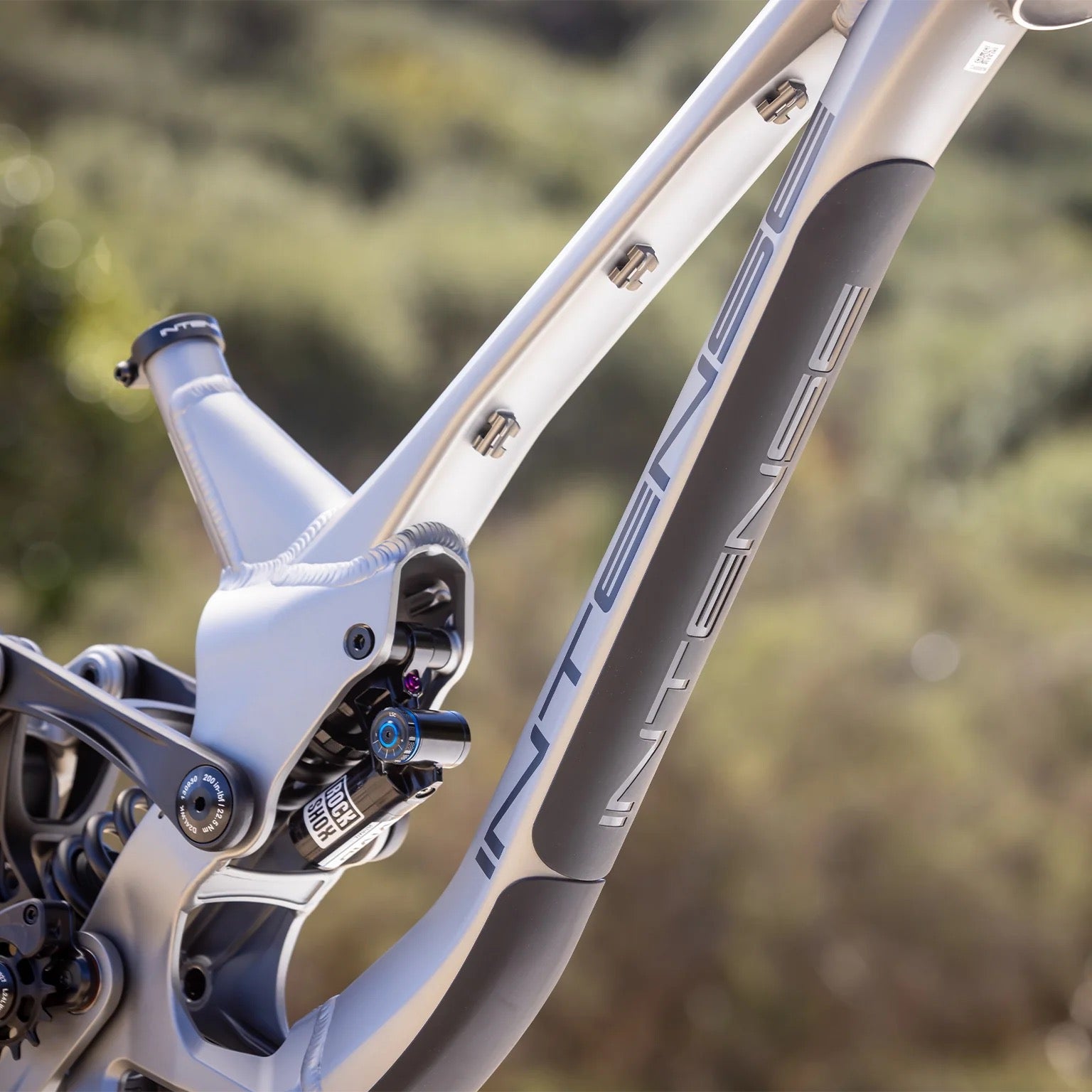

FRAME M1 Performance Alloy Frame, Alloy Linkage, external cable mounts,

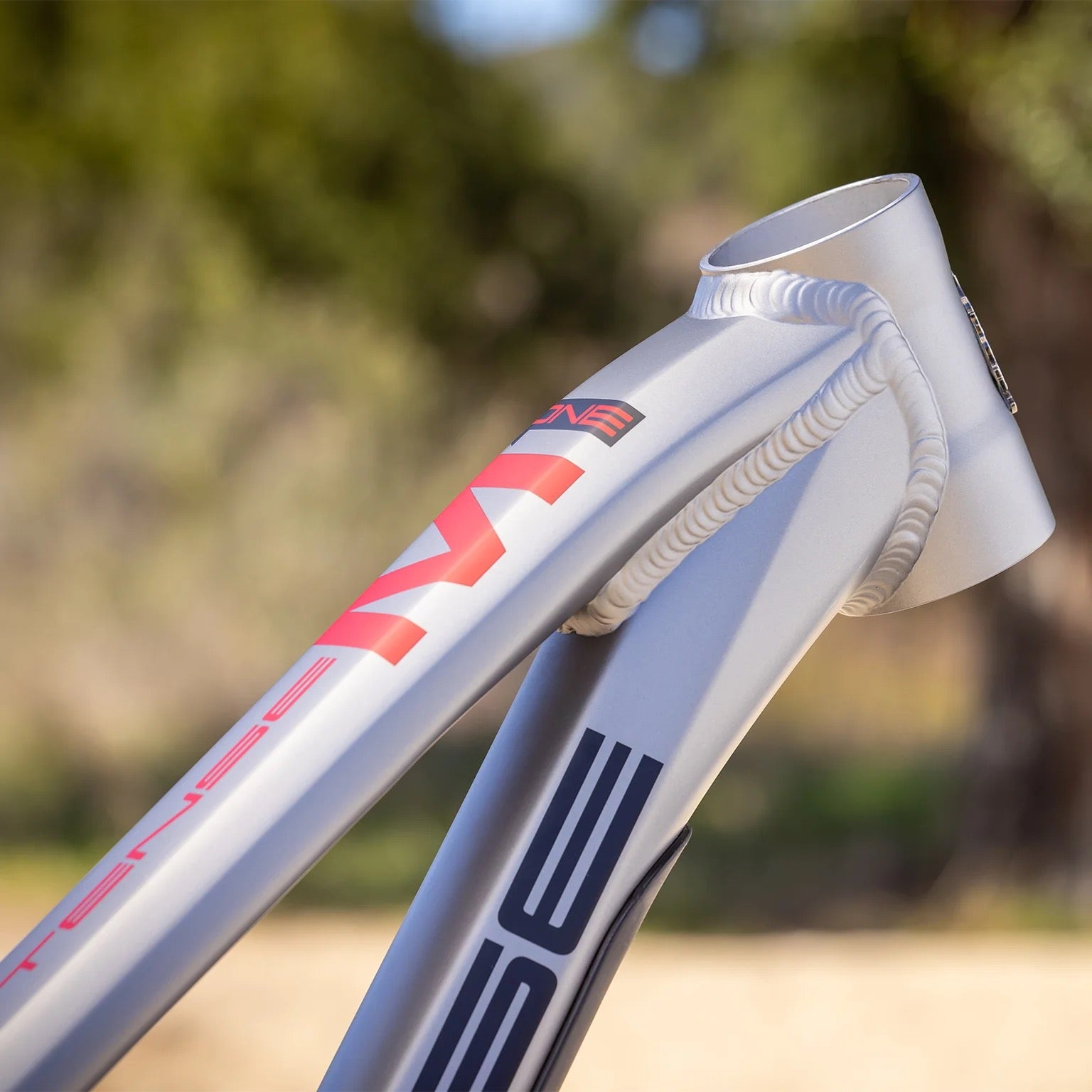

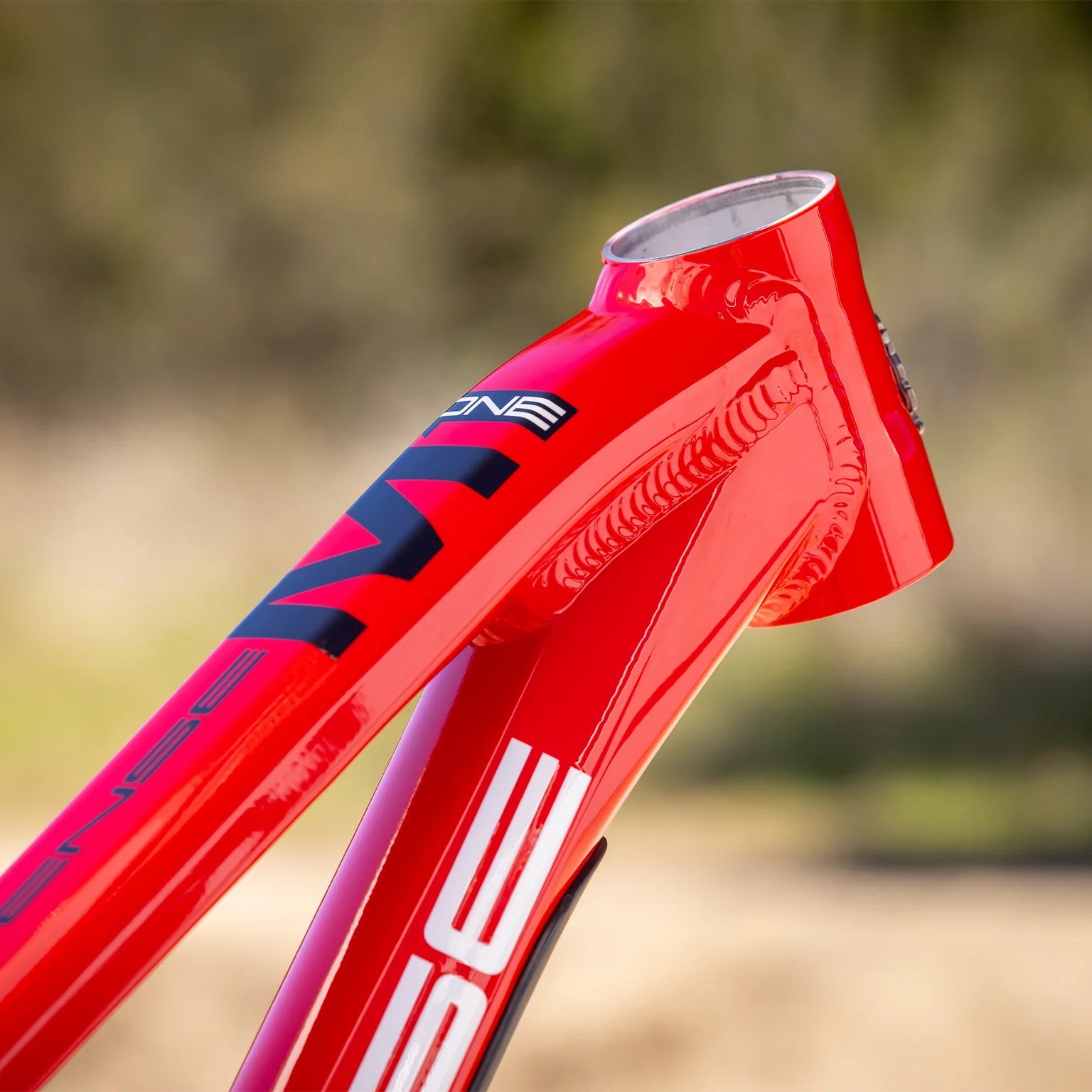

ZS56/ZS56 headtube, full downhill flak guard armor, integrated mud guard, 203mm (linear), 212mm (progressive) rear travel.
ROCKSHOX

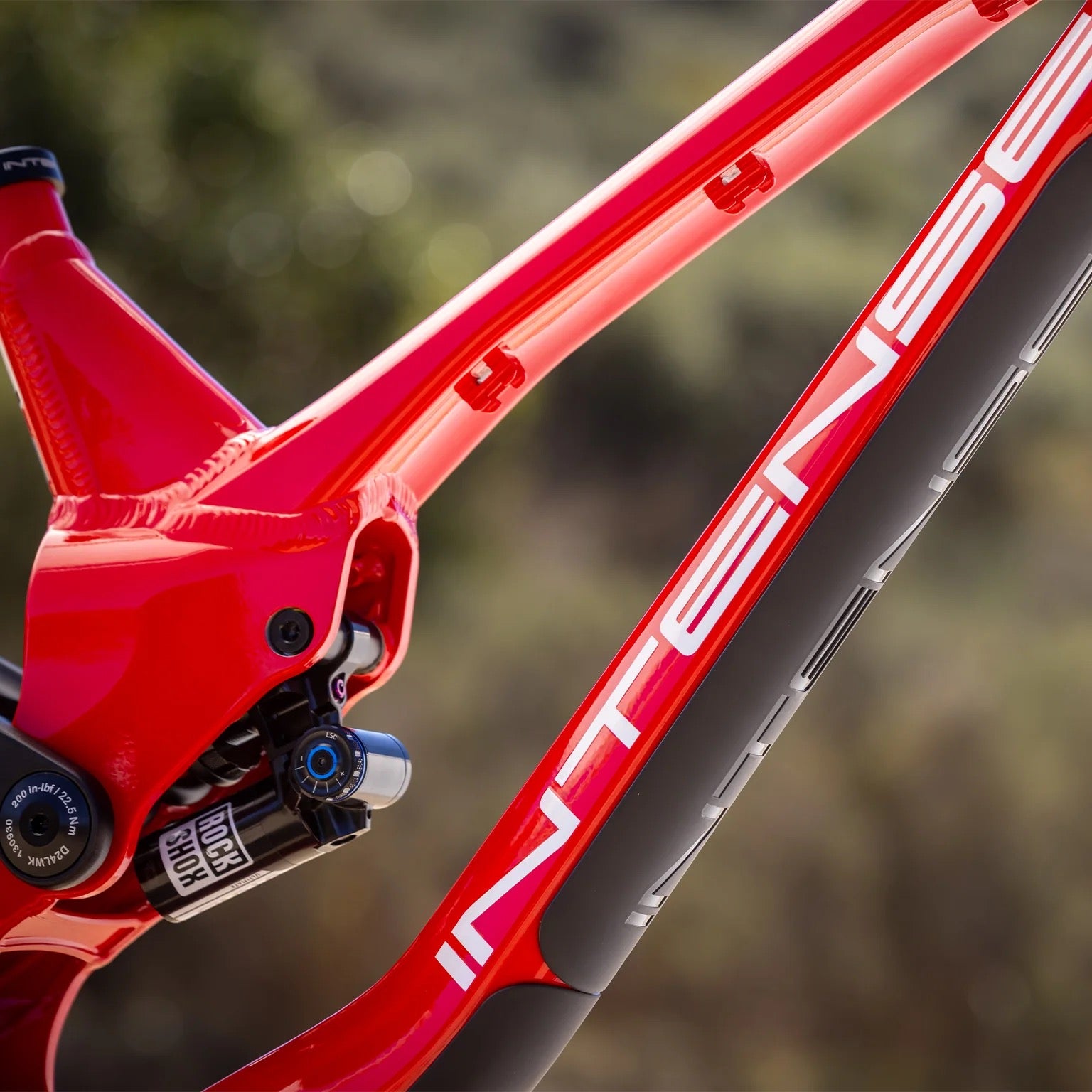

VIVID COIL ULTIMATE		 RS-VIVC-ULT-C1, RC2T Damper, Rebound Adjustment,
Independent High and Low Speed Compression Adjustment, Hydraulic Bottom Out.
FOX FACTORY DHX2 High/low speed compression and high/low speed rebound,
250mm x 75mm, 8mm x 40mm and 8mm x 20mm hardware

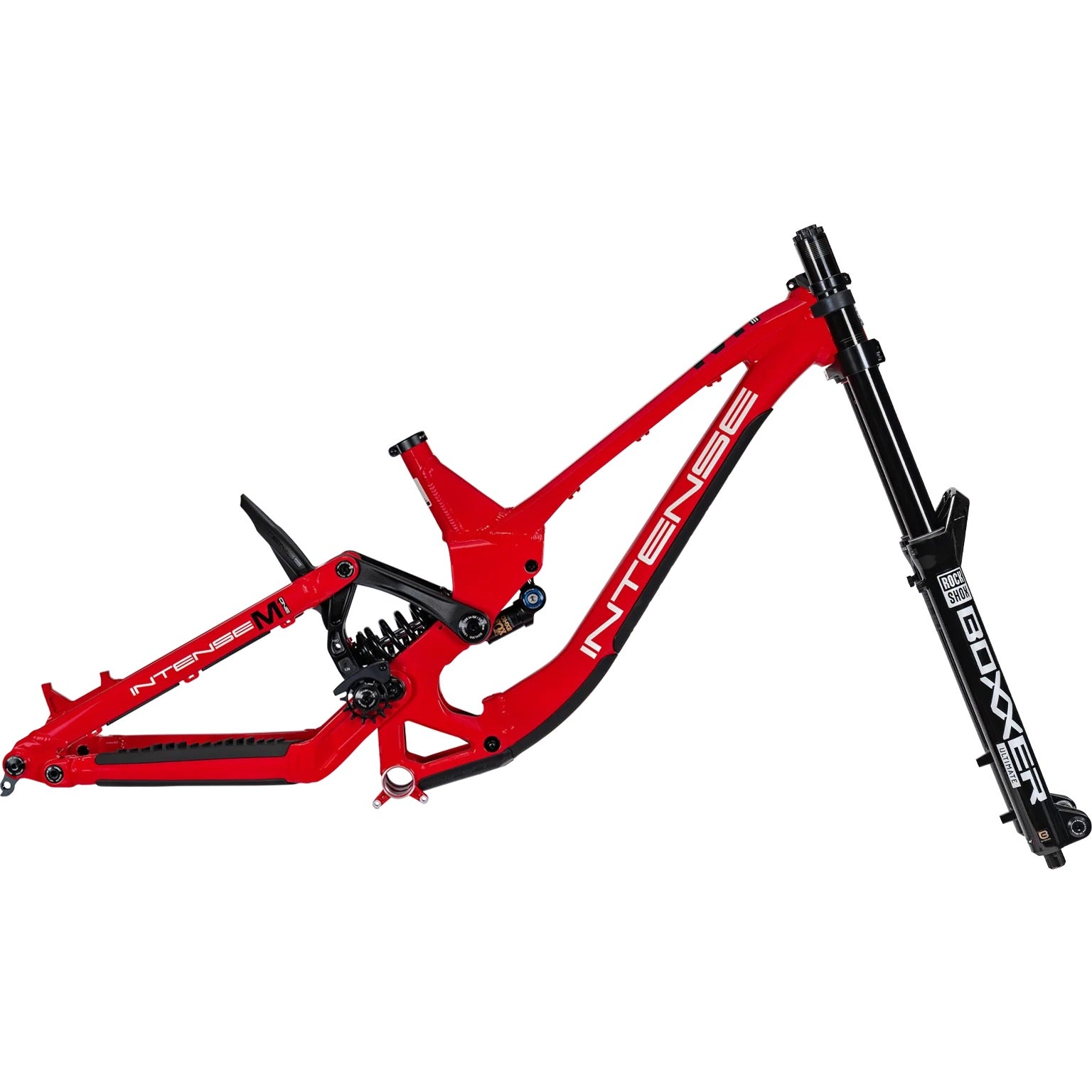

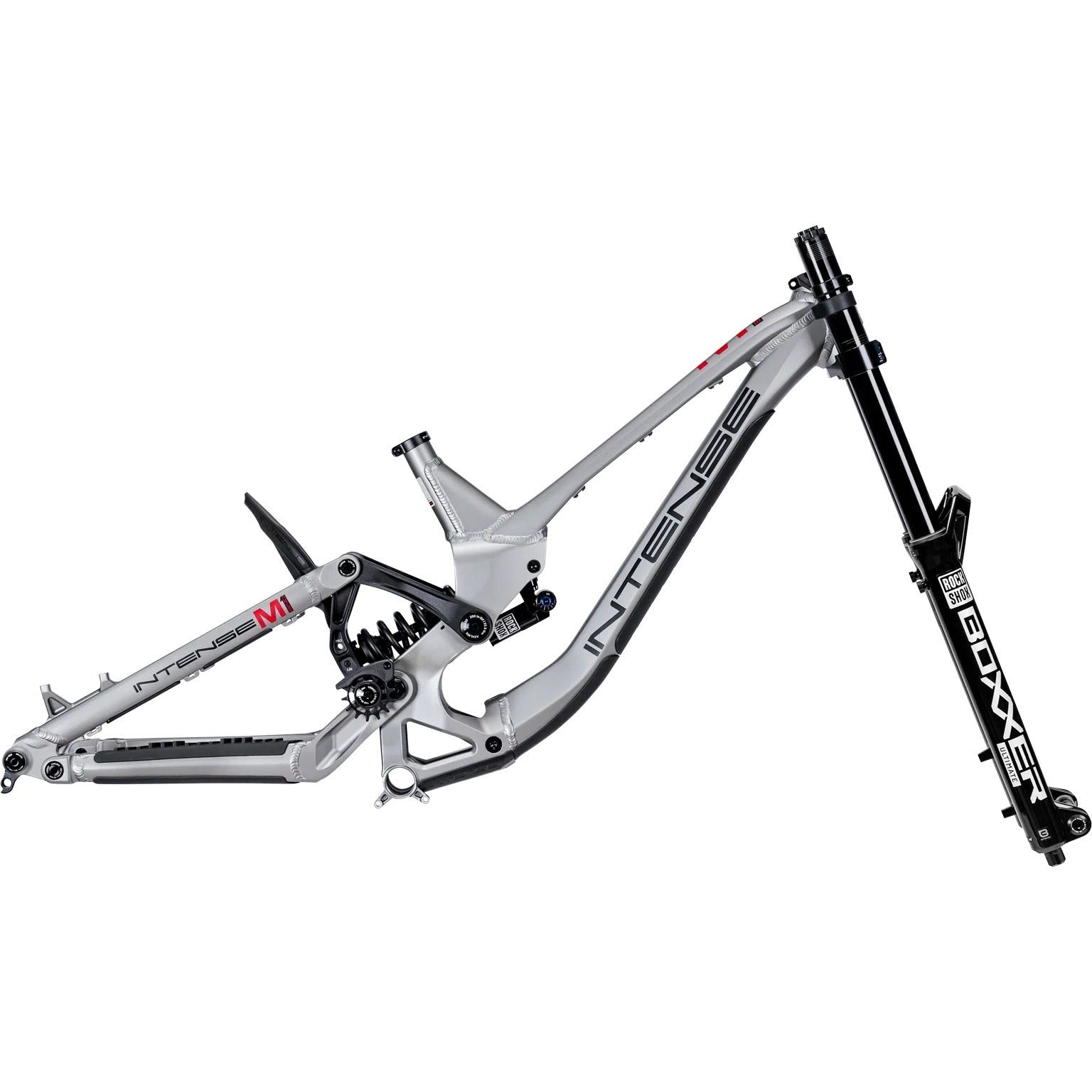

ROCKSHOX BOXXER Charger™️ 3 RC2 dampers, downhill-tuned DebonAir+,
ButterCups, SKF wiper seals, 20x110mm BOOST, 200mm travel.

BIKE GEOMETRY
FRAME SIZE SM MD LG XL
WEIGHT (NO SHOCK) 11lbs 6oz / 5.19kg 12lbs / 5.44kg 12lbs 3oz / 5.52kg 12lbs 7oz / 5.64
SIZING 5'0-5'6" 5'4"-5'10" 5'8"-6'2" 6'1"-6'6"
REACH 430mm 450mm 470mm 490mm
HEADTUBE ANGLE 63° 63° 63° 63°
SEATTUBE ANGLE (Effective) 75° 75° 75° 75°
SEATUBE ANGLE (Actual) 57° 57° 57° 57°
WHEELBASE 1243mm 1263mm 1290mm 1310mm
CHAINSTAY LENGTH 445mm 445mm 445mm 445mm
BB HEIGHT 355mm 355mm 355mm 355mm
STACK 628mm 628mm 641mm 641mm
TOPTUBE LENGTH 593mm 613mm 637mm 662mm
HEADTUBE LENGTH 100mm 100mm 115mm 115mm
BB DROP 0.5mm 0.5mm 0.5mm 0.5mm
SEATTUBE LENGTH 405mm 405mm 440mm 440mm
STANDOVER HEIGHT 812mm 814mm 821mm 822mm
FORK AXLE TO CROWN 605mm 605mm 605mm 605mm
MAX SEATPOST DEPTH 120mm 120mm 155mm 170mm
