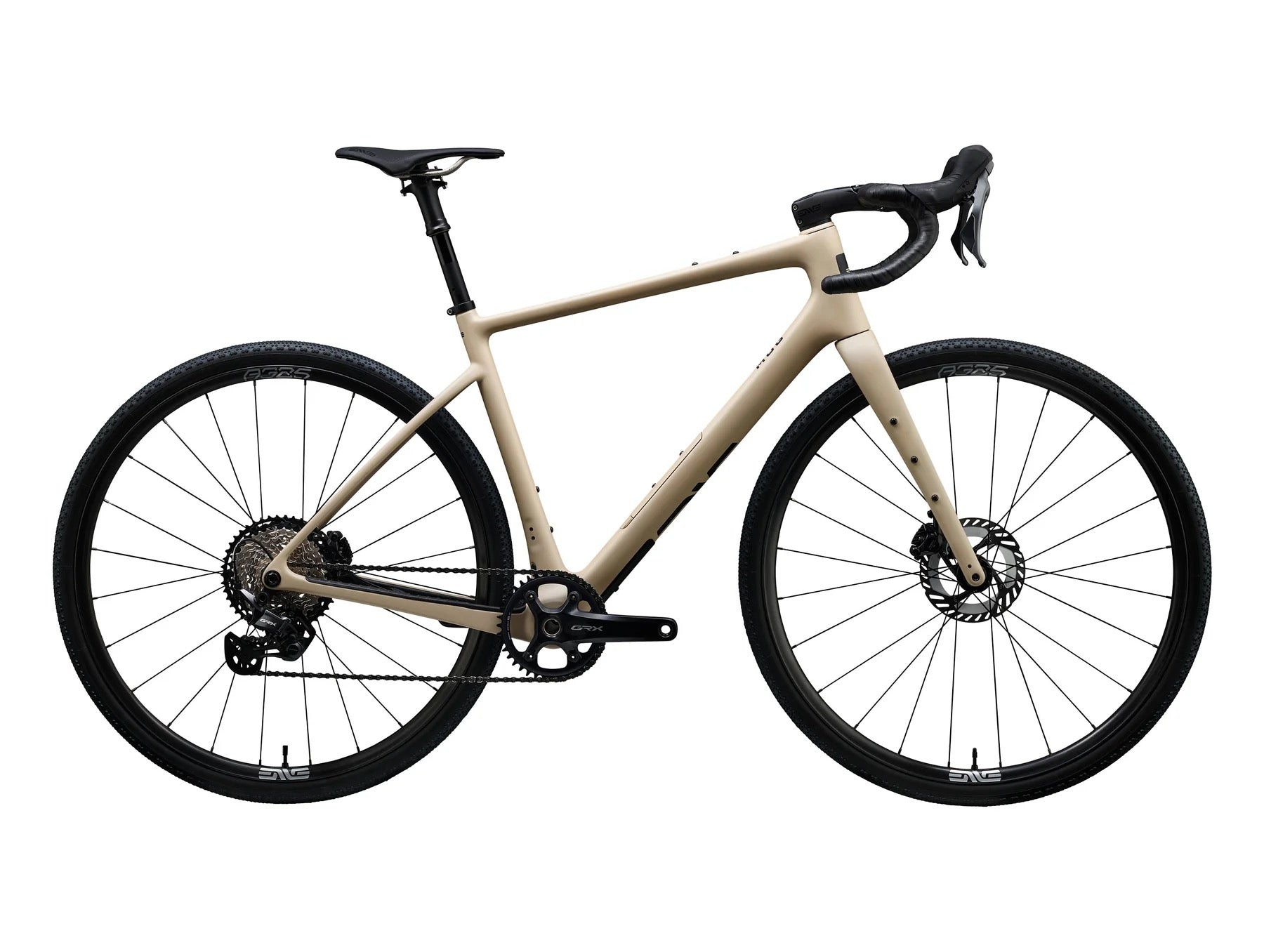

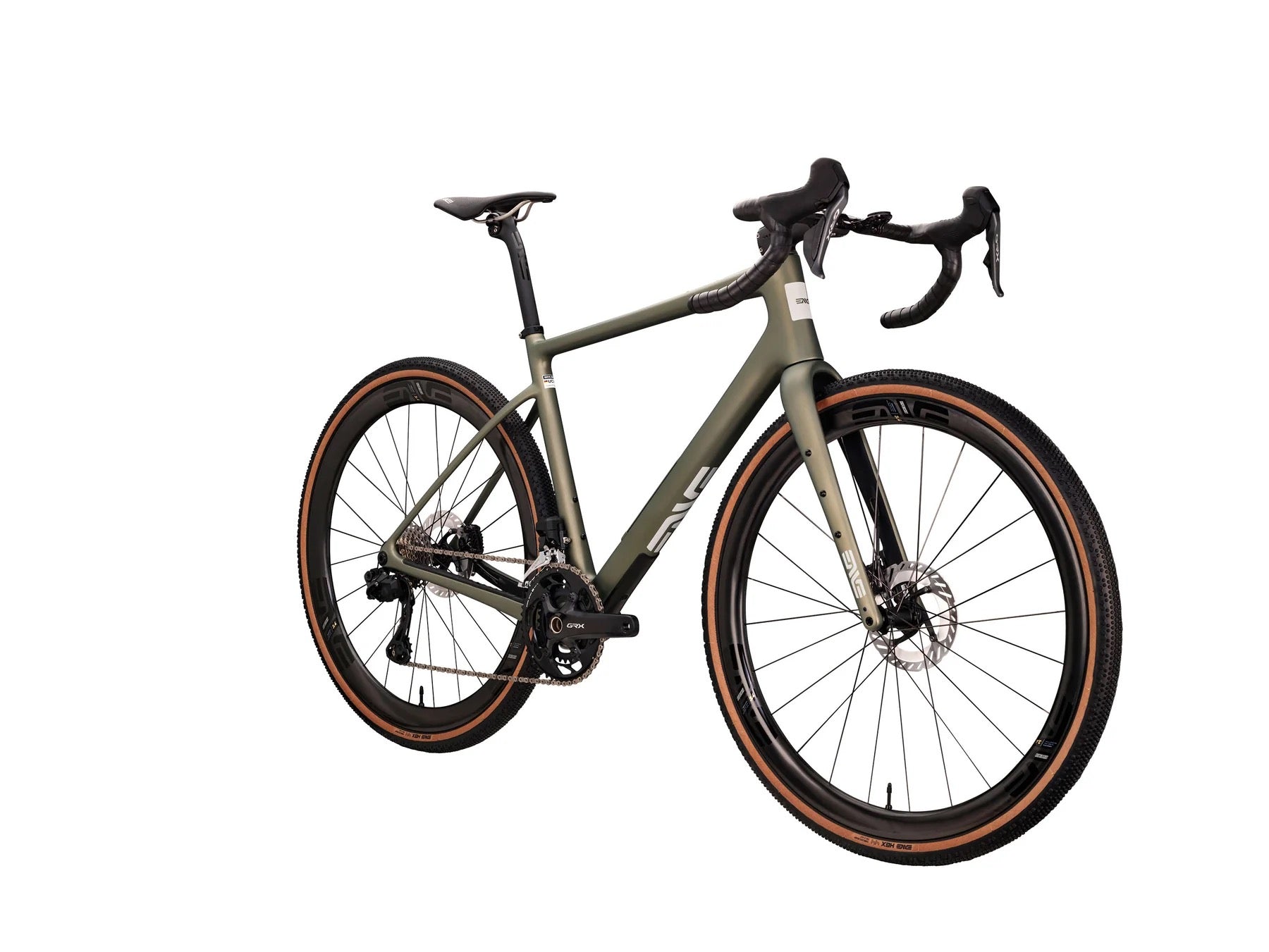

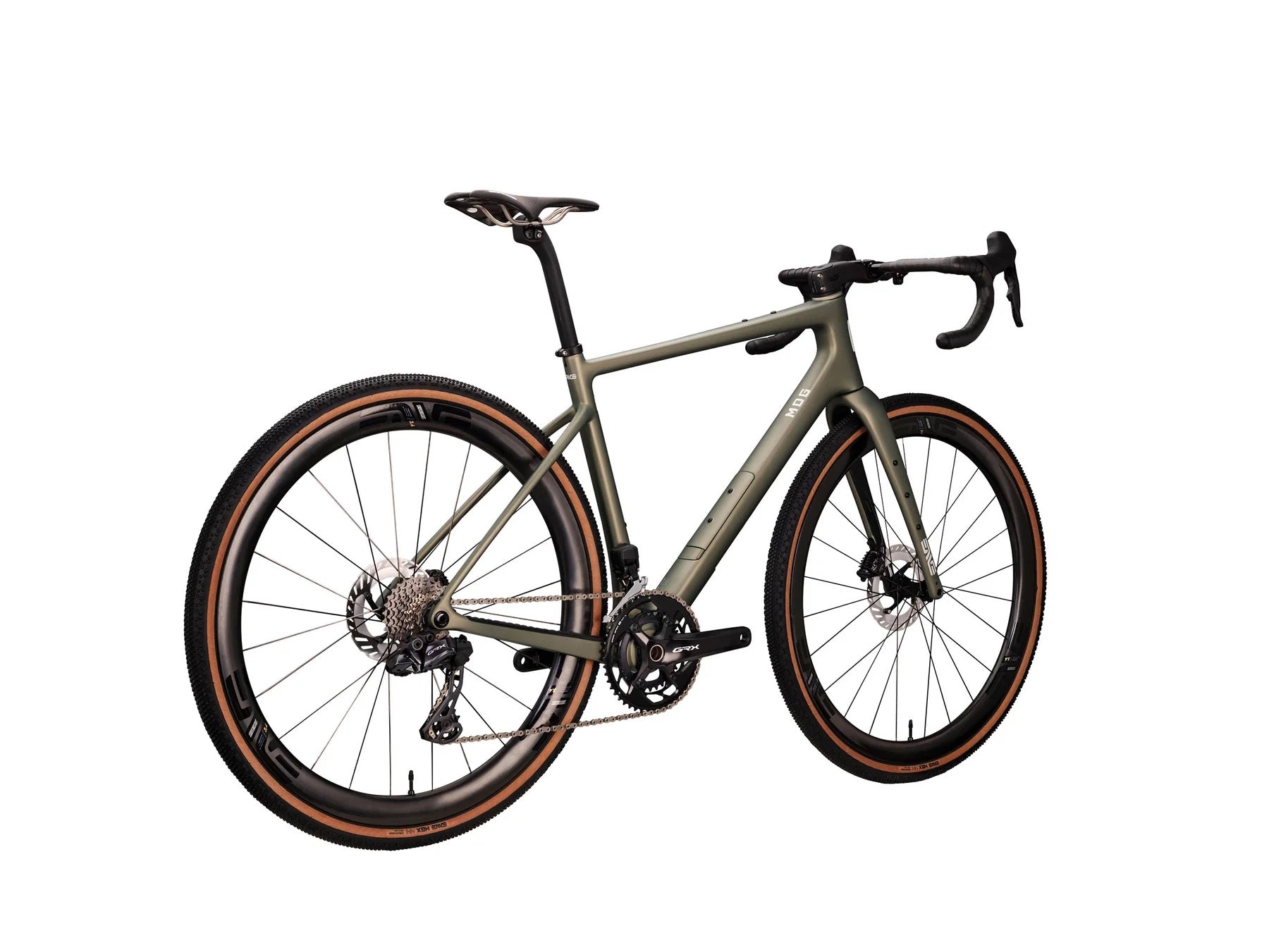

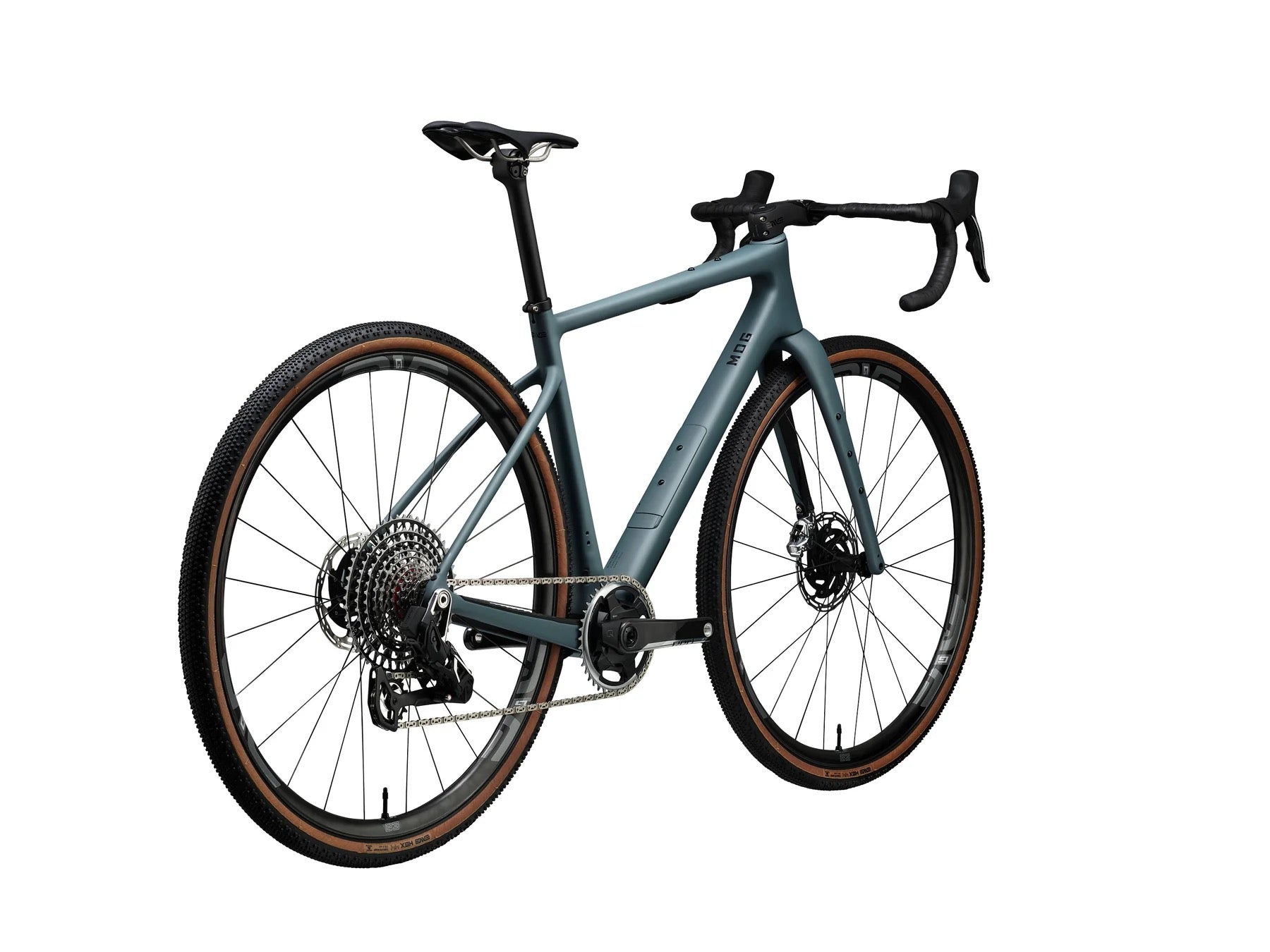

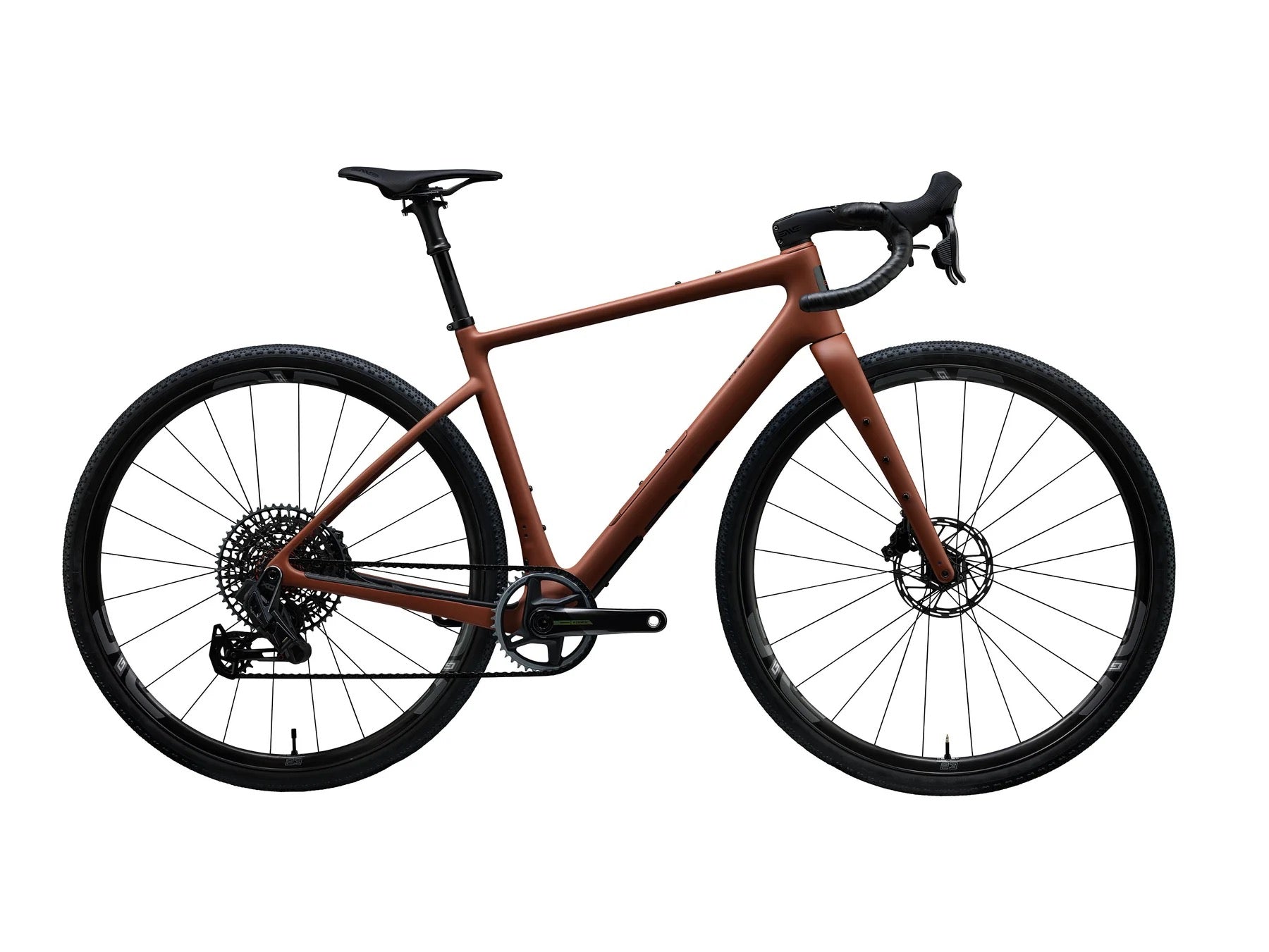

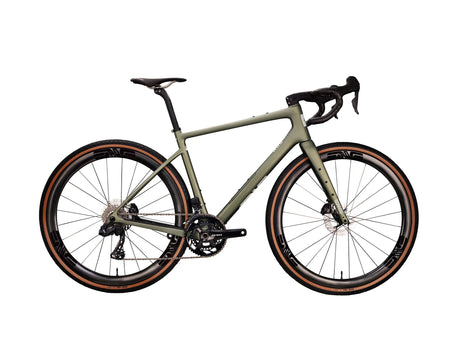

ENVE MOG

(0)
$4,100.00
Color
Frame Size

Contact DT Creations Today

Email (945) 250-8646

Fully assembled pickup

  • American Express
  • Apple Pay
  • Diners Club
  • Discover
  • Google Pay
  • Mastercard
  • PayPal
  • Shop Pay
  • Venmo
  • Visa

This is a custom build bike that starts with your frame selection and components. You will pick up your fully assembled and ready to ride bike from DT Creations.

Share on social media

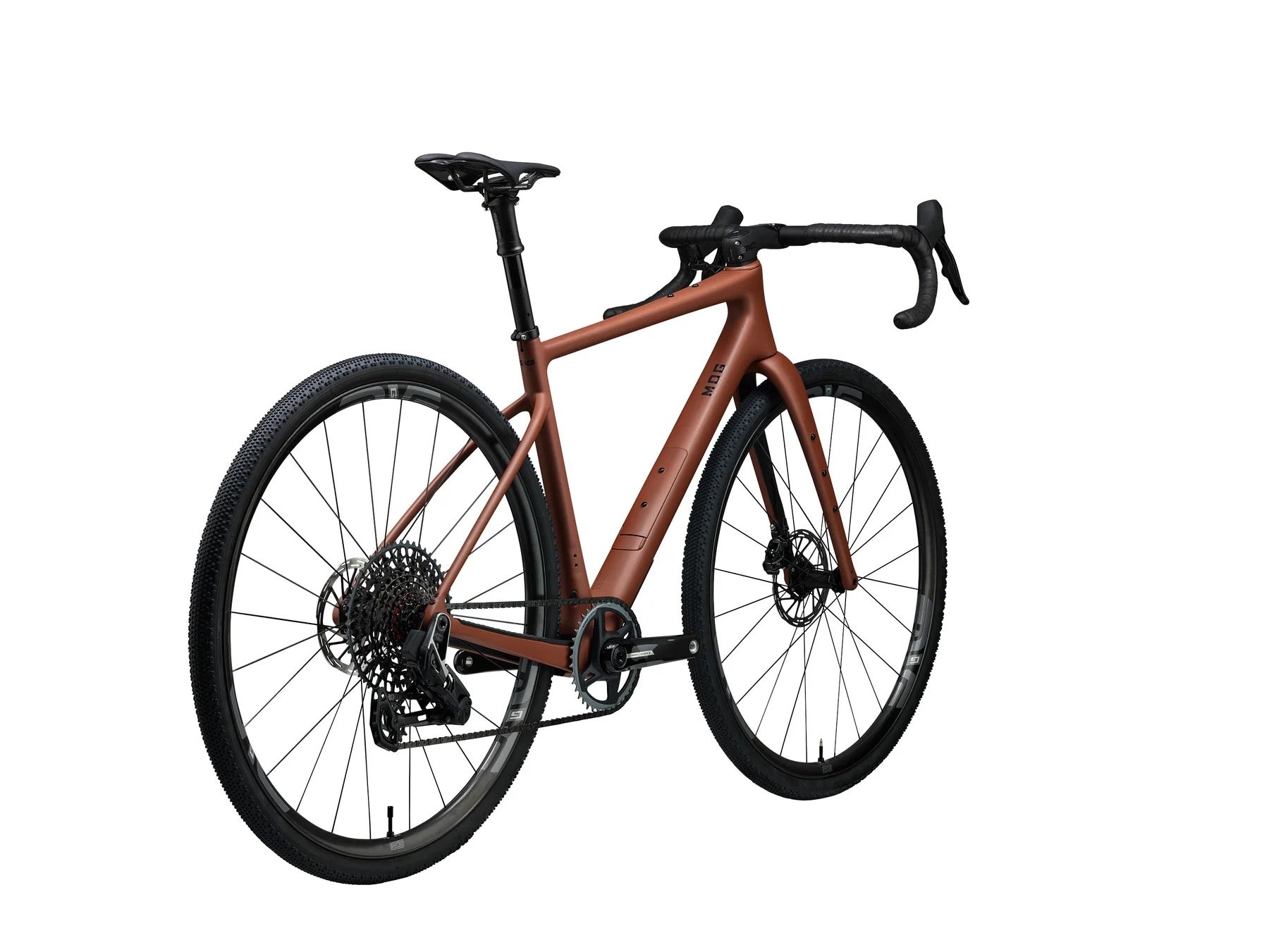

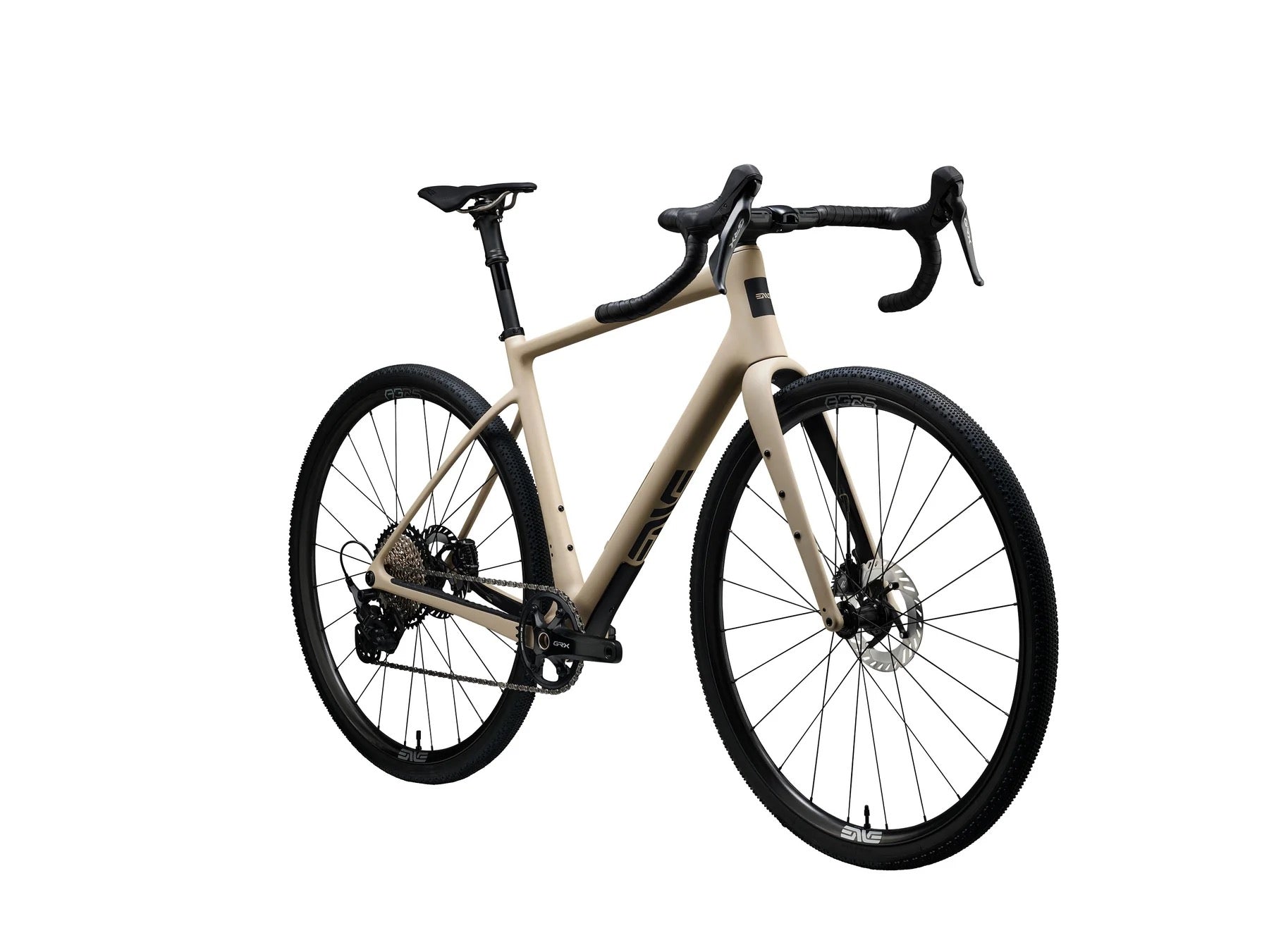

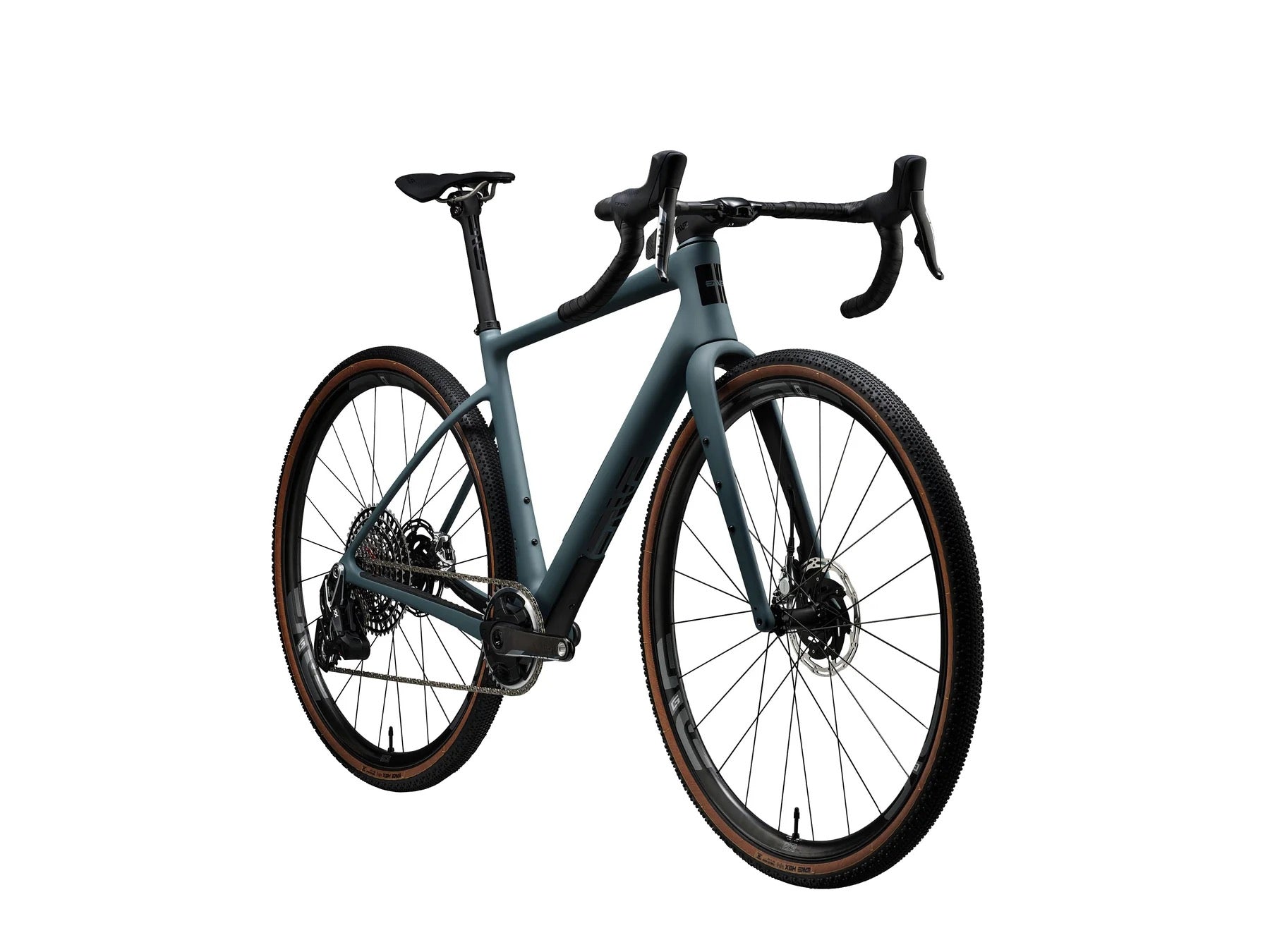

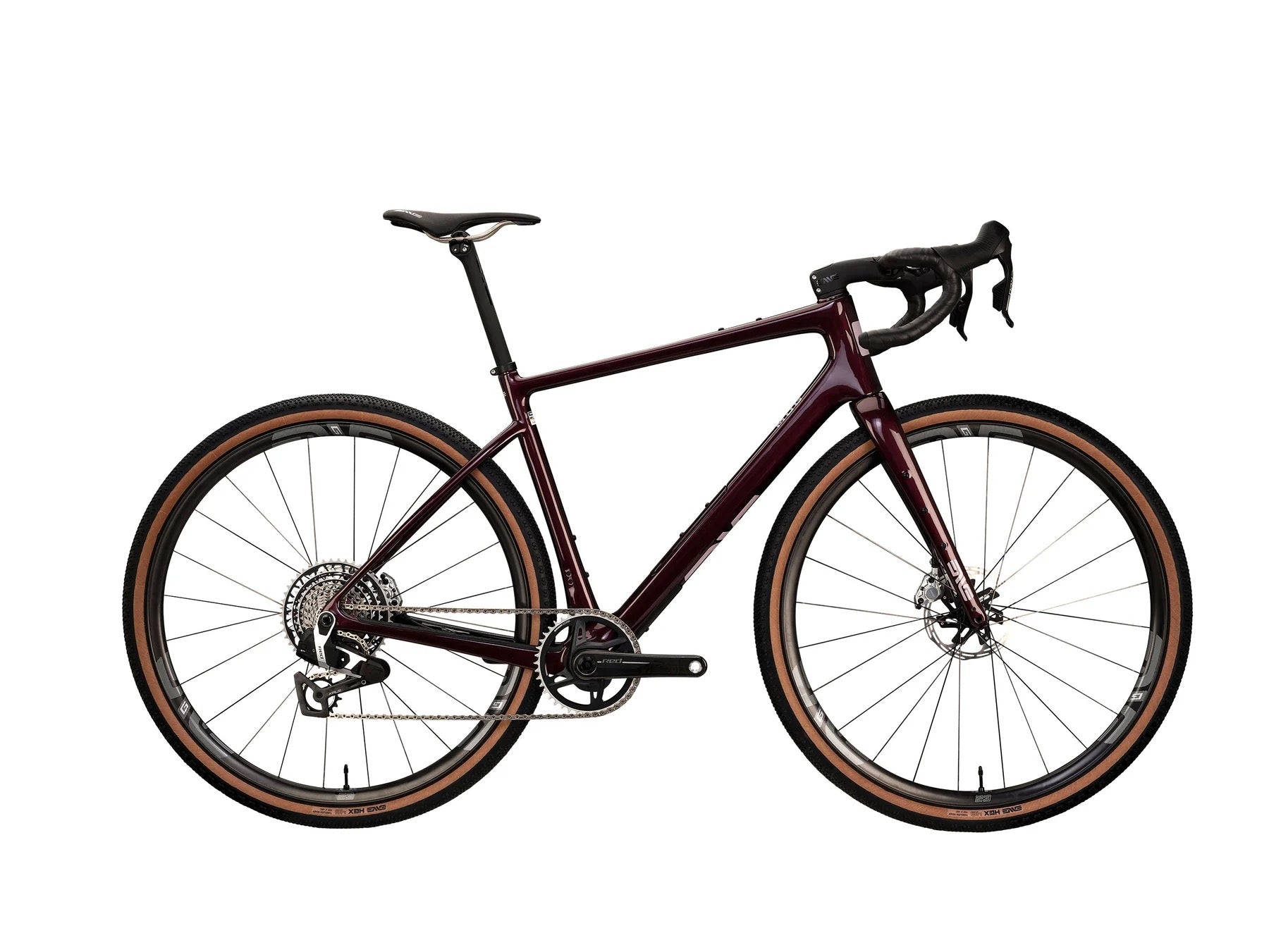

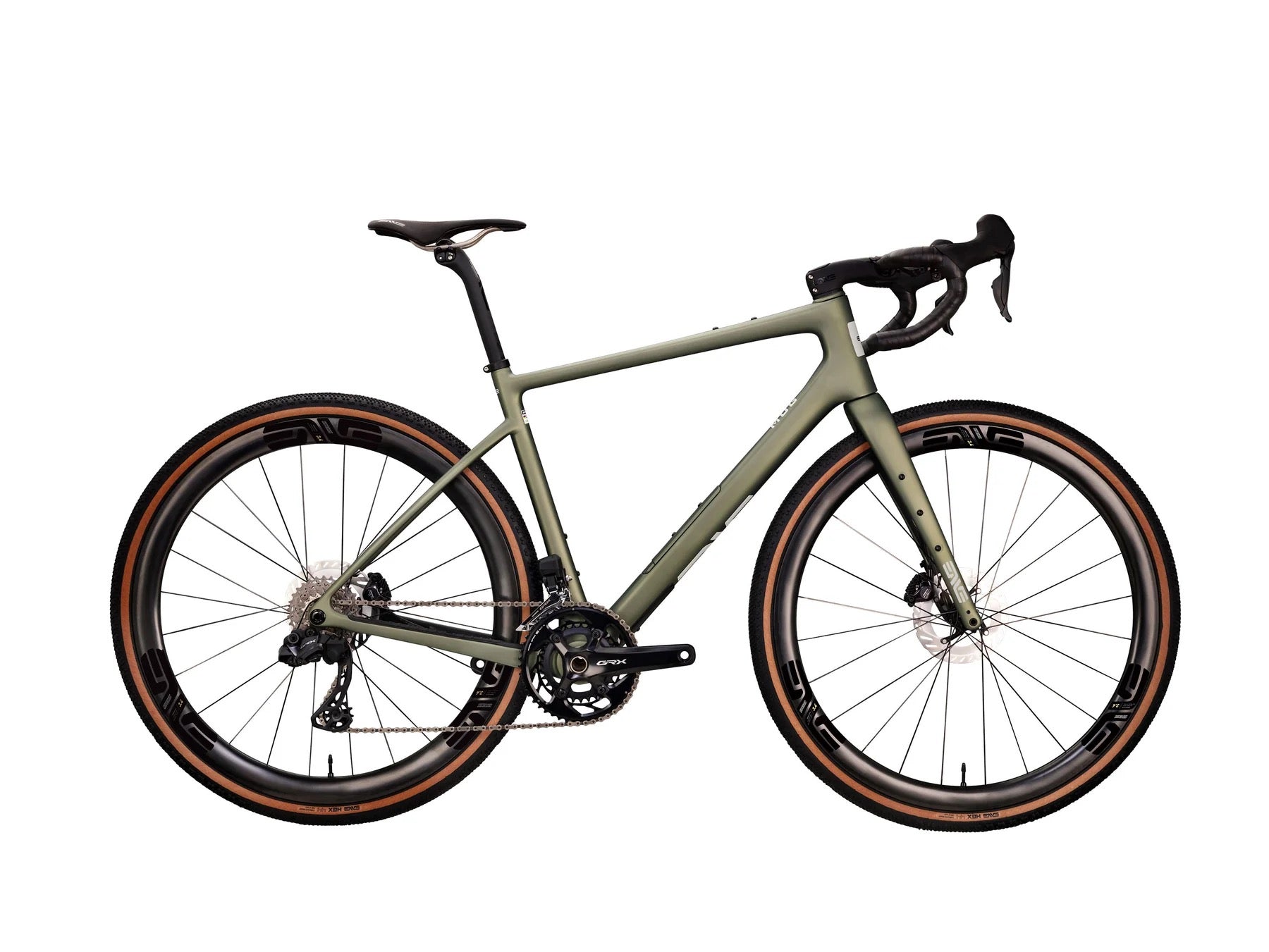

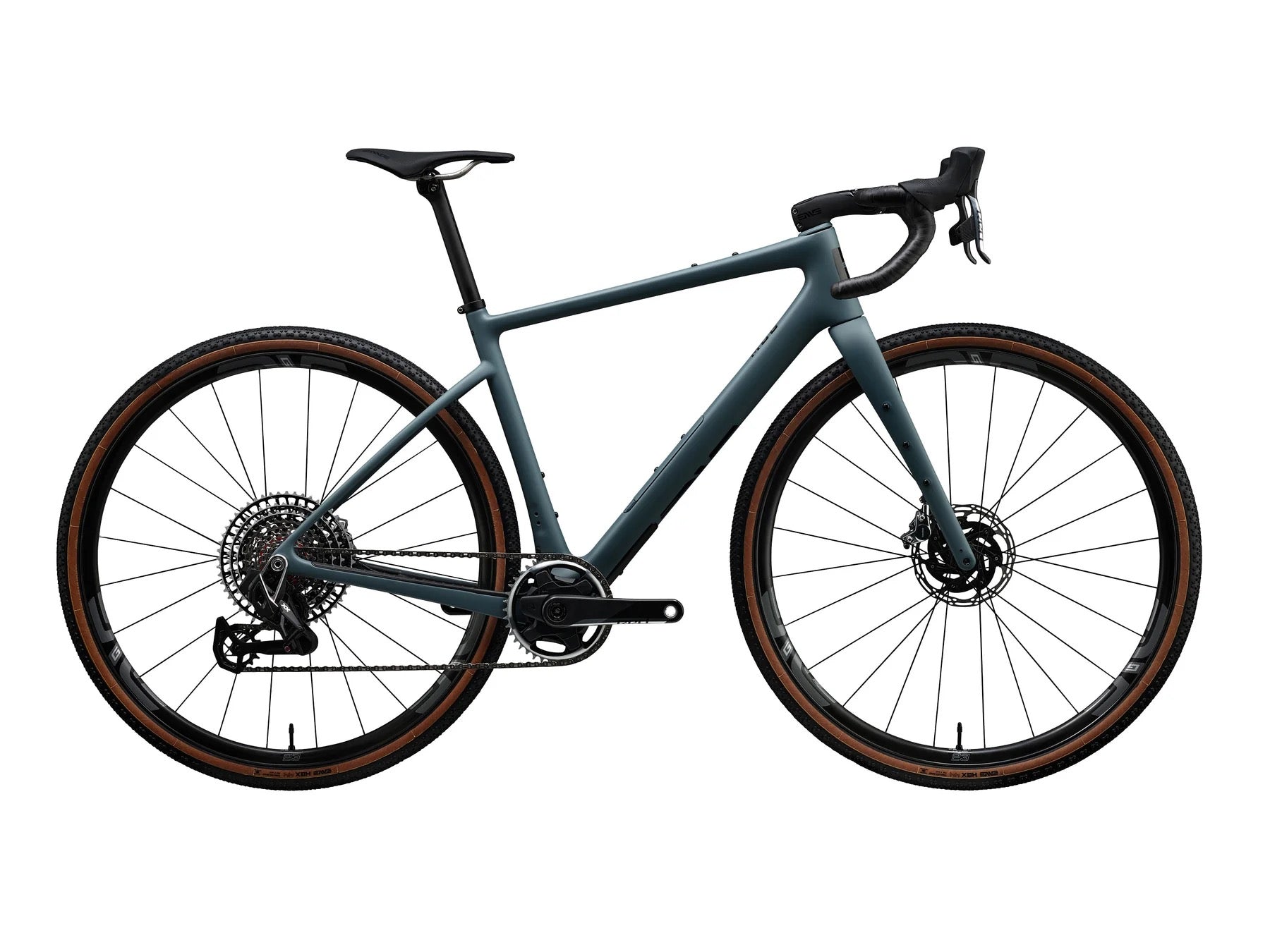

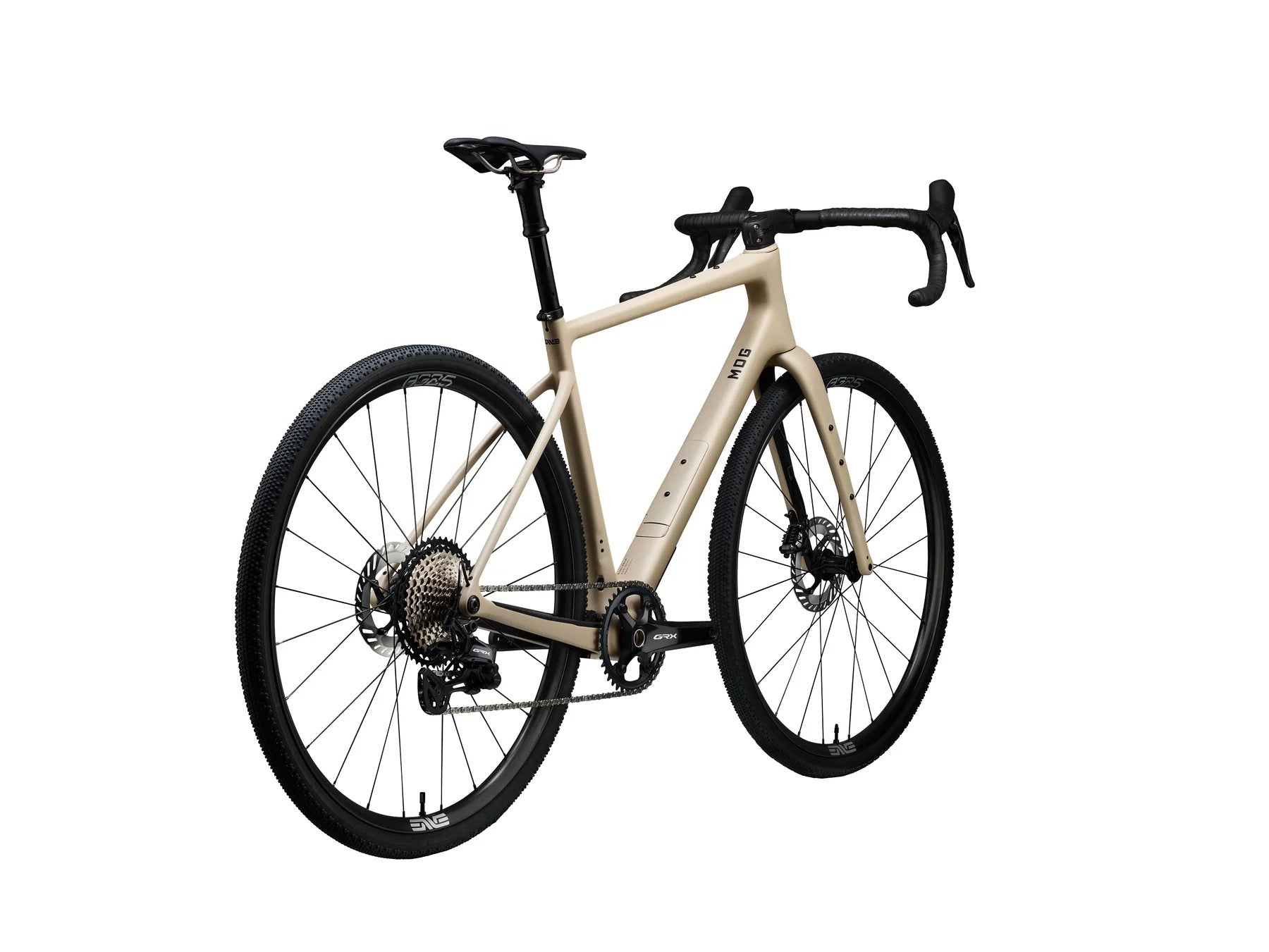

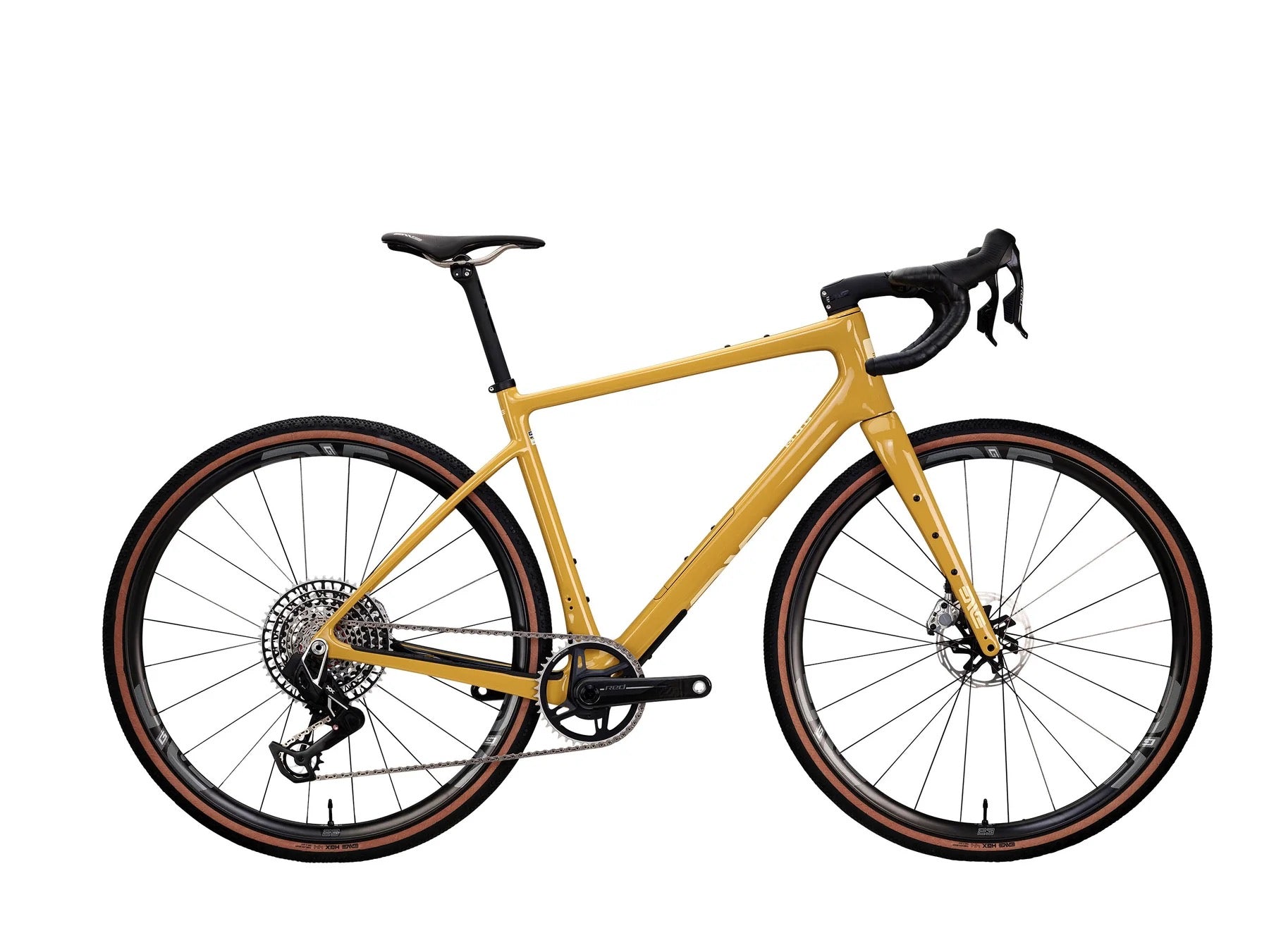

An ENVE frameset is more than a starting point, it’s the foundation of a bike built with intention. By offering the MOG as a frameset, ENVE empowers you to craft a bike that reflects your riding priorities, personal fit, and uncompromising standards. With a broad selection of handlebar models, along with tailored options for bar dimensions, stem length, and seatpost setback, every detail of your cockpit is yours to define.

For fit guidance, consult your trusted ENVE retailer or professional bike fitter, and explore the ENVE Best-Fit Calculator to achieve a chassis configuration that’s as precise as it is personal.

Frameset Only - Complete bike is custom built for each customer

IN STORE PICKUP ONLY


Product Details

Frame weight: 950 grams (56cm, painted, no hardware)

Frame Specs

Frame Material ENVE M.O.D Carbon, 12x142 Thru-Axle, Flat-Mount Disc, Threaded T47 BB, Internal Routing, Fender Compatible
Fork Material ENVE M.O.D Carbon, 12x100 Thru-Axle, Flat-Mount Disc, Internal Routing, Fender Compatible
Target Application Gravel Racing/Riding/Exploration/Adventure
Sizes (cm) 49, 52, 54, 56, 58, 60
Fork Rake 57, 55, 53
Fork Axle to Crown 395mm
Frame Size/Fork Rake 49cm/57, 52cm/57, 54cm/55, 56cm/55, 58cm/53, 60cm/53
Frame Weight 950g +/- 2% (Size 56, Painted, No Hardware)

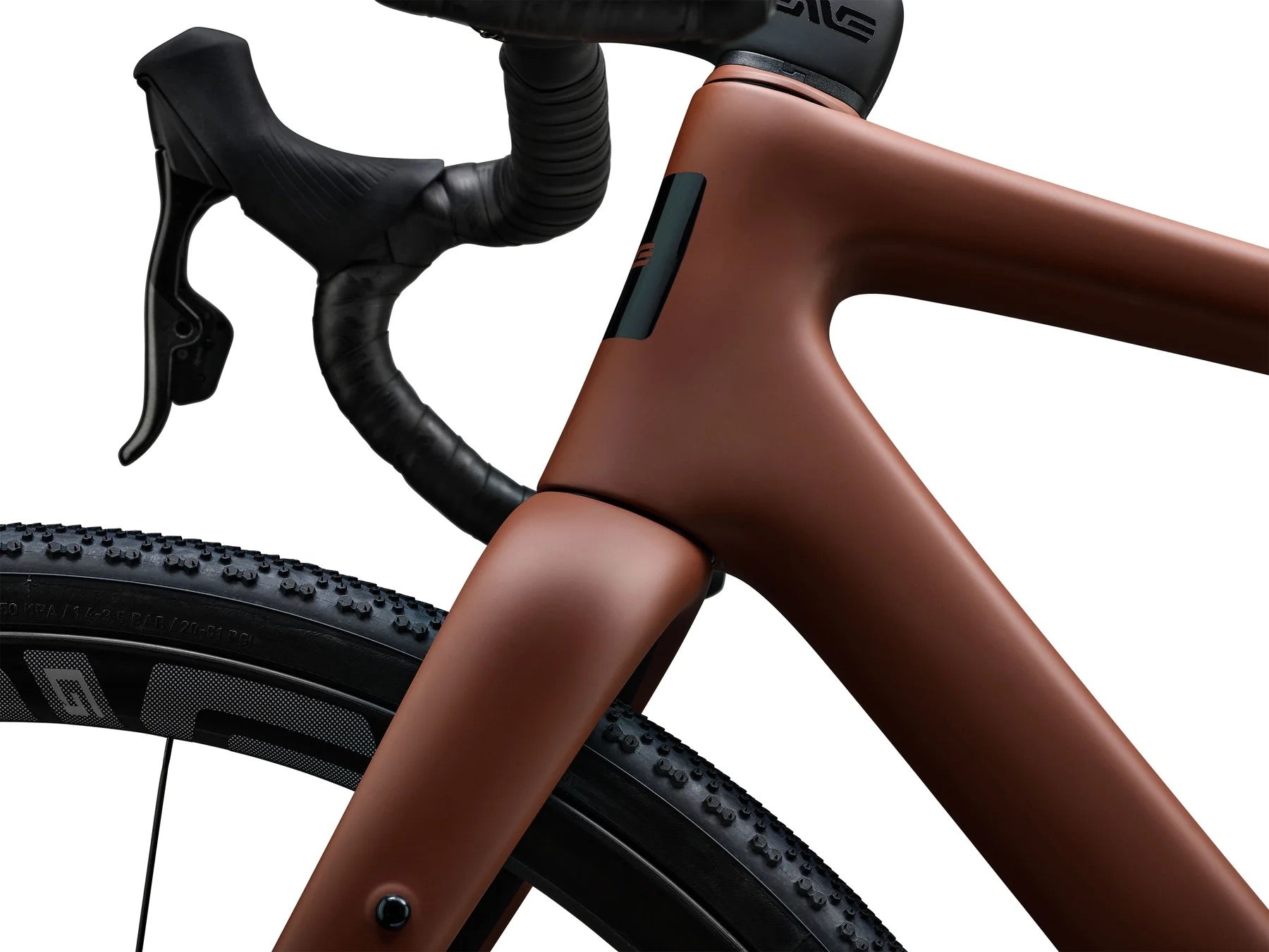

Headset ENVE Integrated IS52/IS52 Internal Drop-In
Headset Bearing 1.5" IS52 Upper and Lower
Seat Post Diameter 27.2
BB Type T47 Inboard Bearing
Brake Mount Flat Mount
Brake Rotor Compatibility F: 160/180, R: 140/160 (Adapters Required)
Front Axle 12x100 (Total Length: 122, TP:1.5, TL:15)
Rear Axle 12x142 (Total Length: 168, TP:1.0, TL:14)
Minimum Tire Size 700 x 36c
Optimal Tire Size 700 x 40c-44c
Maximum Listed Tire Clearance 700 x 50c
Frame Routing ENVE IN-Route Internal
Water Bottle Capacity 3
Top Tube Mounts Yes
Fender Mount Compatible Yes
Wheel Size 700C (650b Not Recommended)
